Fig. 4
Download original image

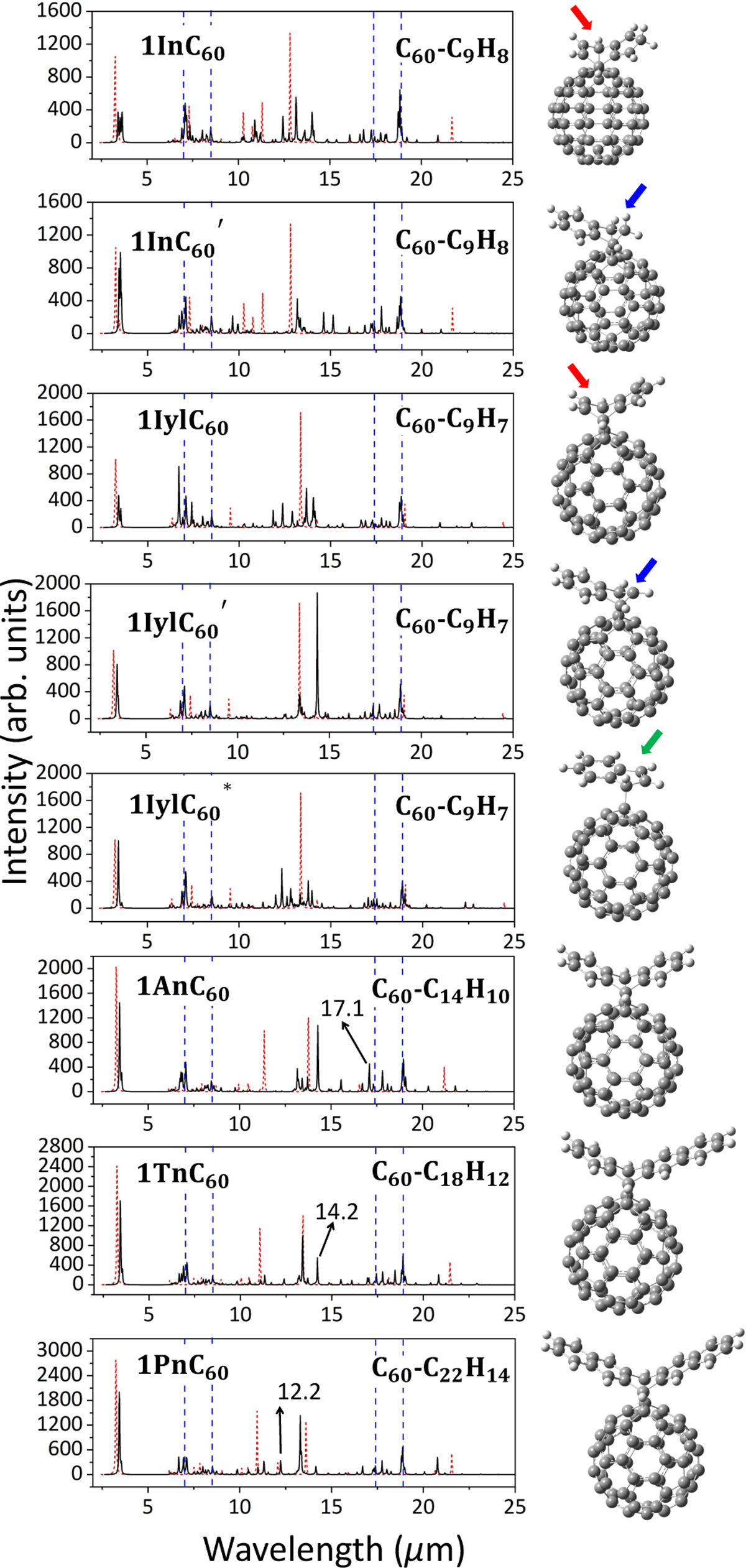

Scaled theoretical IR spectra of mono PAH-C60 adducts (one PAH unit: C60-CxHy) modeled at the B3LYP-D3/6-31+G* level. All spectra were convolved with a Lorentzian function of FWHM = 0.02 μm. In the case of 2H-indene (In) and indenyl (Iyl), the blue and red arrows highlight the binding of the PAH with a pentagon and hexagon ring to the C60 cage, respectively. For indenyl, with a single bond connecting its pentagon to C60, a green arrow has been used instead. In all panels, the dashed red spectra correspond to the isolated pristine PAH, while the dashed blue lines mark the four strongest C60 features (~7.0, 8.5, 17.4, and 18.9 μm). The black arrows on the spectra indicate those characteristic features (specific of each adduct), which are free of contribution from C60, the pristine PAH and even from the other adducts.
