Fig. 4
Download original image

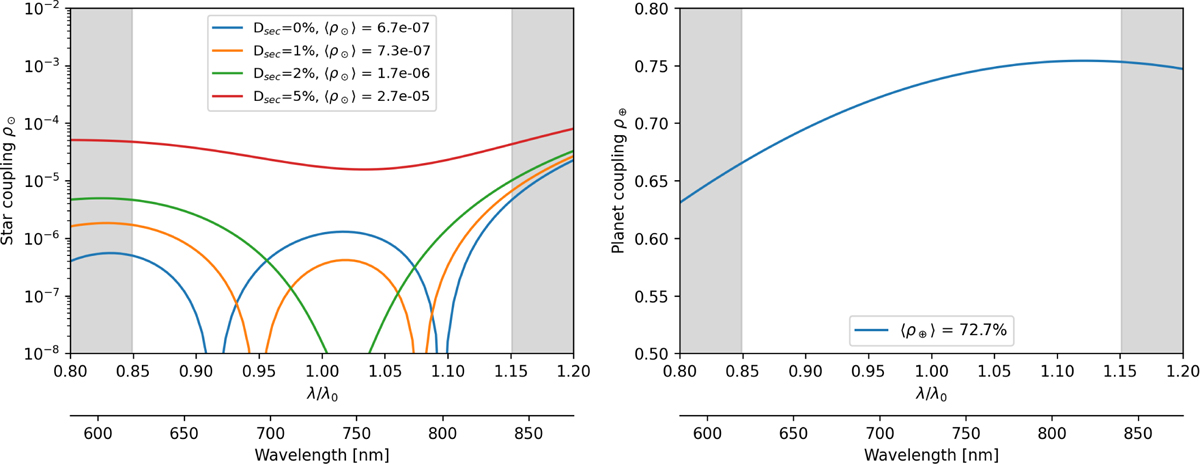

Expected performance for a PIAAN optimizing detection of a companion at 2 λ/D with a 30% bandwidth, i.e., in the RISTRETTO case between 620 and 840 nm. Behavior outside the optimization band is shown in the light gray areas. Left: star null ρ⊙, showing the influence of the residual secondary obstruction. Right: companion coupling mostly independent of the residual obstruction.
