Fig. A.1
Download original image

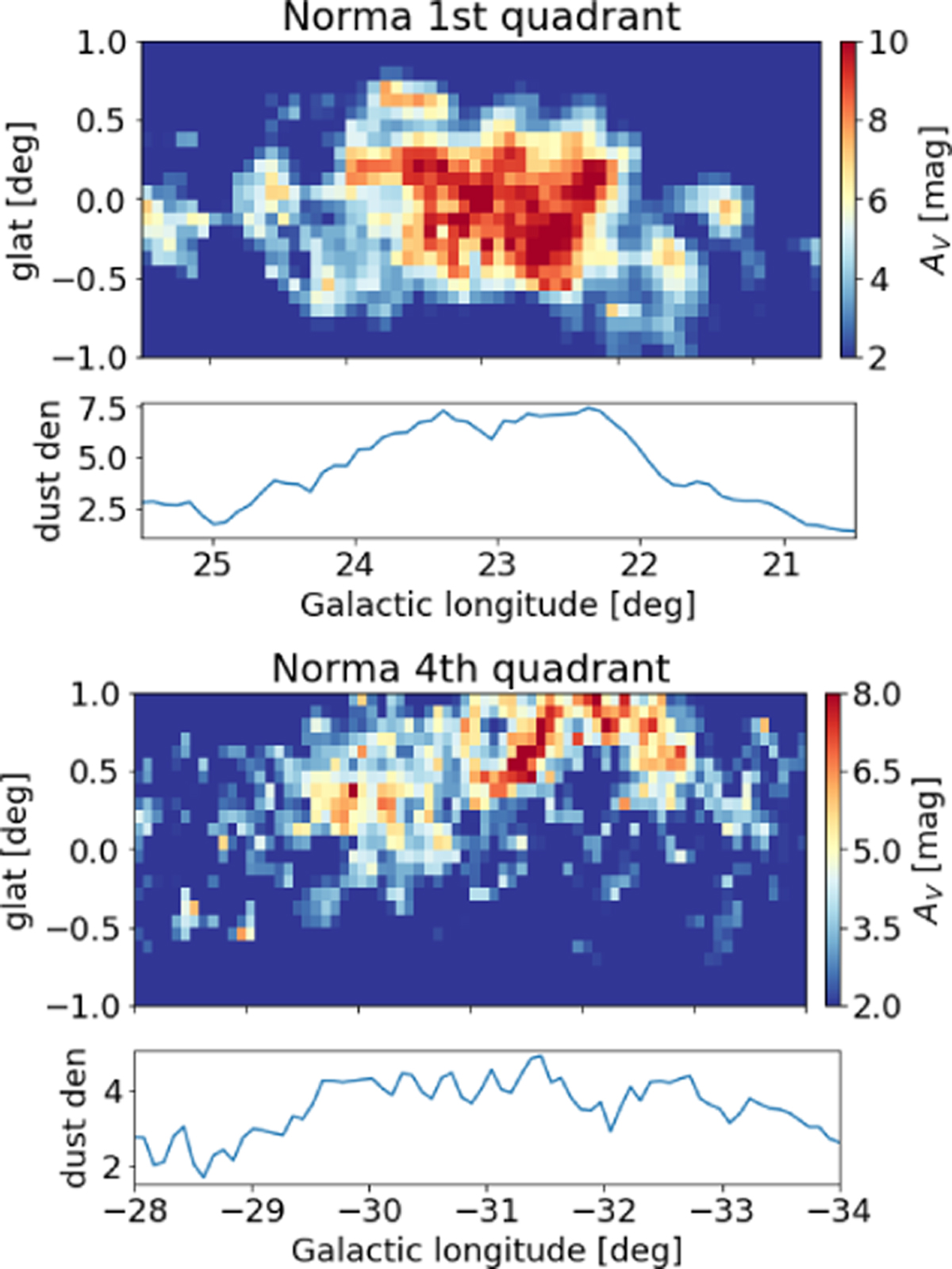

Skymaps and dust profiles for the spiral arm tangencies for the Norma arm. The top panel displays a skymap in Galactic coordinates (l, b) integrated over a distance range selected by eye (see text), while the bottom panel shows the corresponding dust extinction profile as a function of Galactic longitude within that distance range.
