Fig. E.2
Download original image

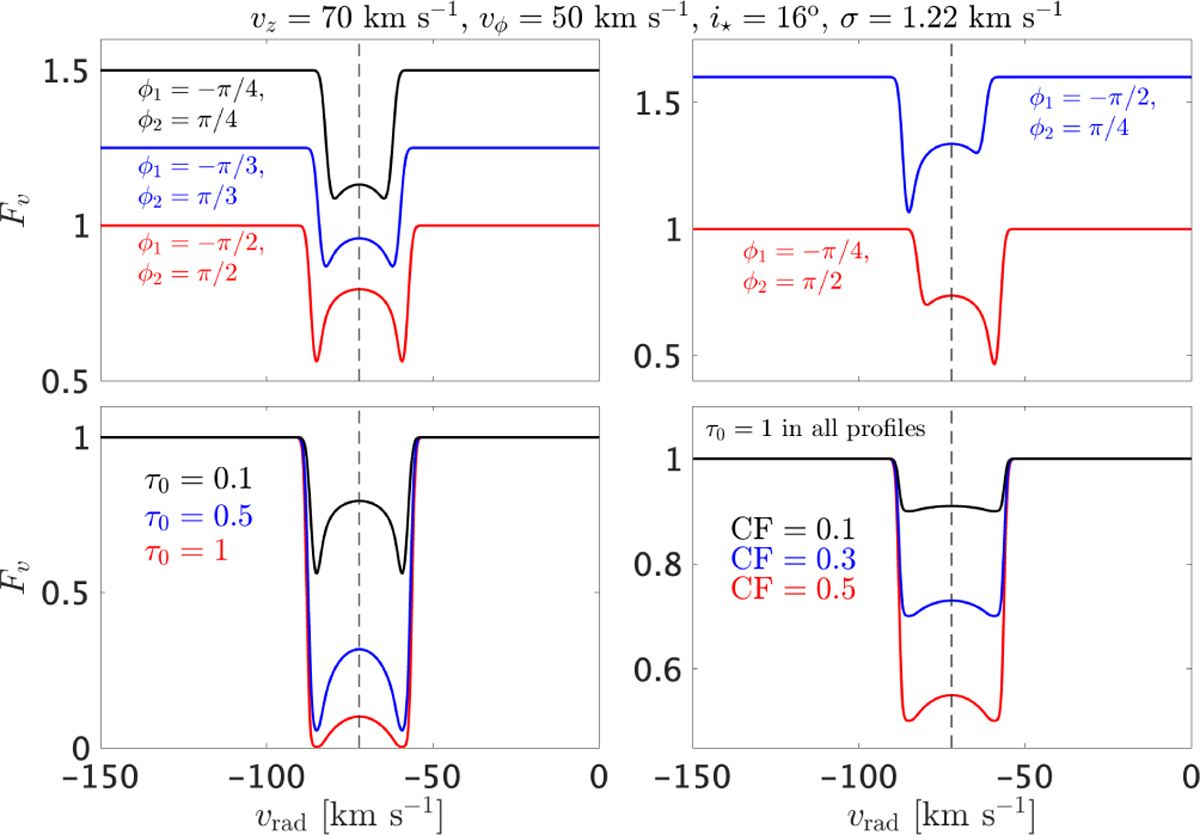

Gallery of absorption profiles from a vertically-narrow region of a wind which is extended in azimuth. In all plots, vz = 70 km s−1, vϕ = 50 km s−1, i⋆ = 16°, and σ = 1.22 km s−1. If not reported, the parameters are ϕ1 = −π/2, ϕ2 = π/2, τ0 = 0.1, and CF = 1. The vertical dashed lines are at −vz cos i⋆.
