Fig. 5
Download original image

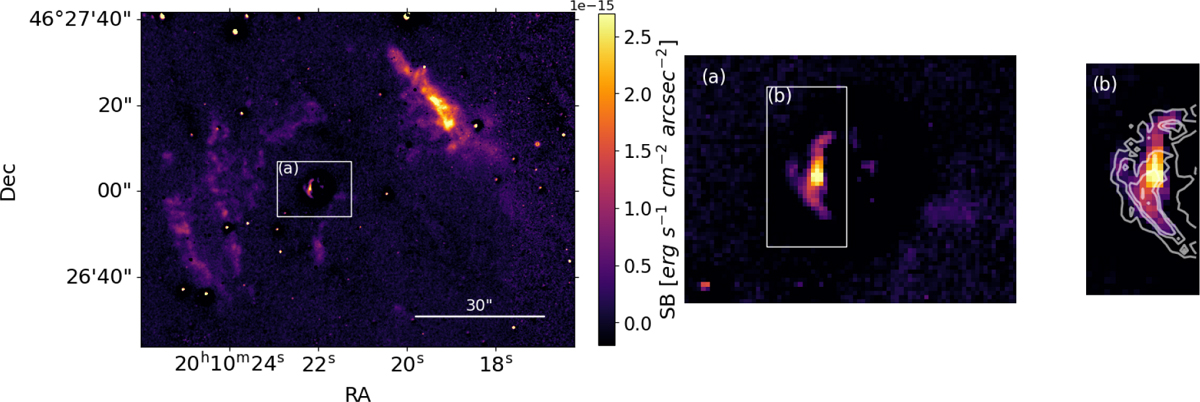

Surface brightness of the H2 1–0 S(1) continuum-subtracted image for NGC 6884 is shown in the left panel. The center panel provides a zoomed-in view of the entire nebula, while the other panel present the H2 continuum-subtracted image overlaid with HST [N II] emission contours, highlighting the knotty, arc-like structure in one half of the nebula, labeled as panel b.
