Fig. 2
Download original image

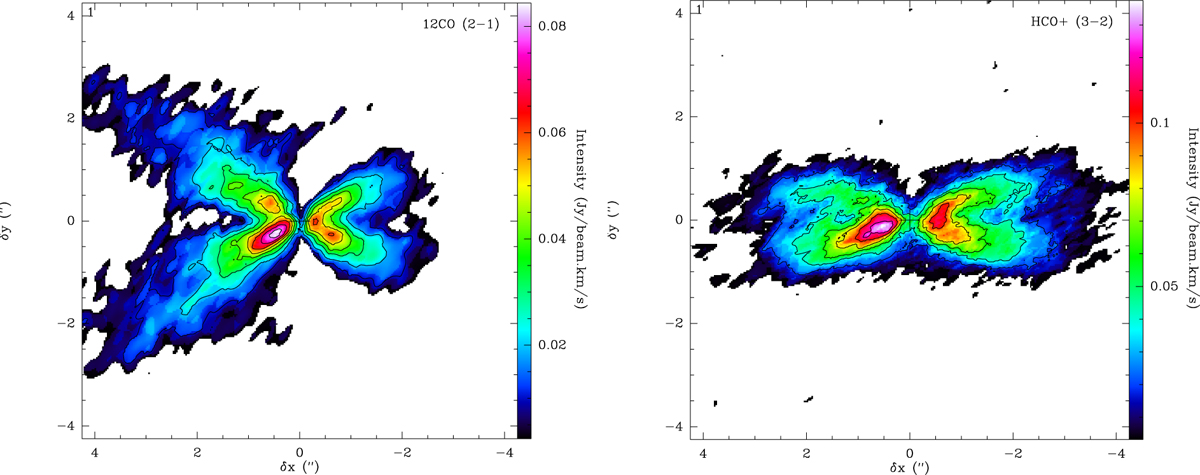

Integrated-intensity map of 12CO 2-1 (left, clipped at 22 mJy/beam km/s), and integrated-intensity map of HCO+ 3-2 (right, clipped at 8 mJy/beam km/s). The maps are rotated by −73.5°. The contours are defined from 0 to 0.1 Jy/beam km/s in steps of 0.01 Jy/beam km/s, i.e., 3.36σ for the 12CO 2-1 map, and from 0 to 0.5 Jy/beam km/s in steps of 0.02 Jy/beam km/s , i.e., 2.30σ for the HCO+ 3-2 map.
