Fig. 17


Download original image

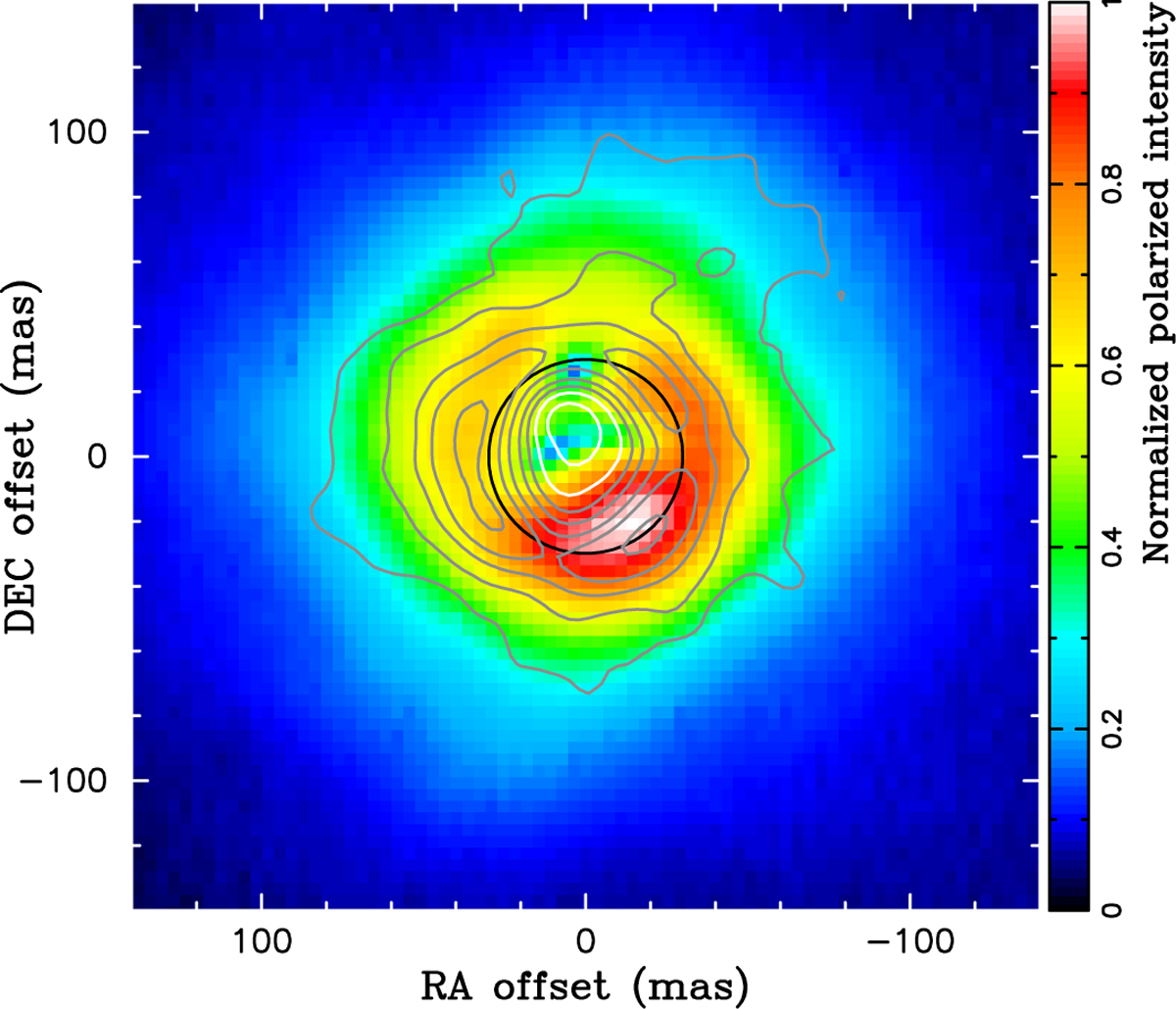

Comparison between the continuum-subtracted integrated intensity map of the 267.93 GHz AlO line (contours) and the polarized intensity map (color map) obtained at 820 nm. The AlO intensity map was obtained by integrating across a velocity range from Vrel = −36 to 36 km s−1. The black circle represents the millimeter continuum diameter. The gray contours correspond to 0.045 (3σ), 0.15 (10σ), 0.3 (20σ), 0.45 (30σ), and 0.675 (45σ) mJy/beam km s−1, while the white contours correspond to −0.15 (−10σ) and −0.045 (−3σ) mJy/beam km s−1. The polarized intensity is normalized to 1 at its maximum.
