Fig. 8


Download original image

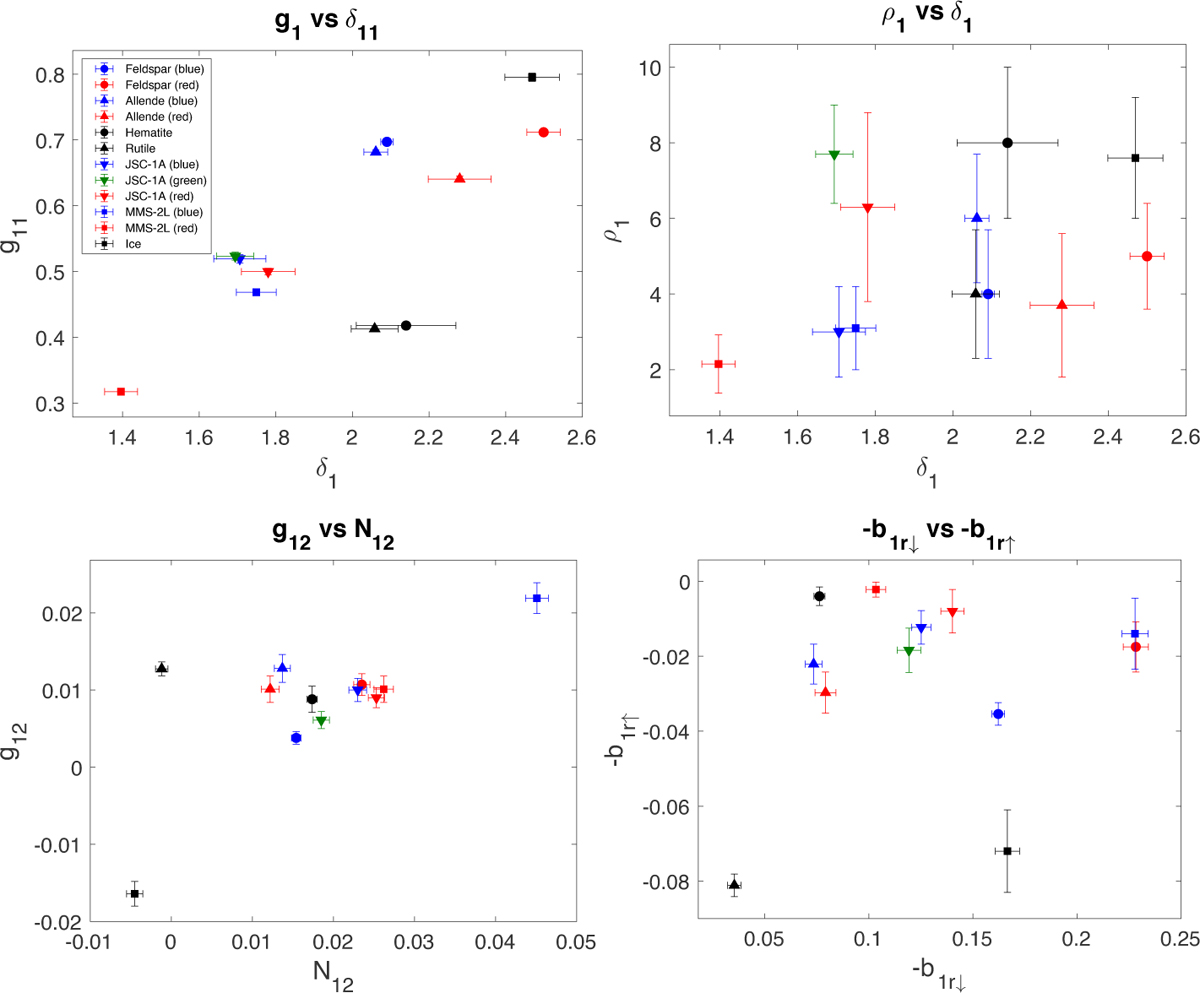

Additional descriptors derived from the parameterized scattering phase matrix elements a1 and b1 for selected materials: the asymmetry parameter, g11, versus the forward-scattering exponent, δ1 (top left), the backward-scattering exponent, ρ1, versus δ1 (top right), the polarization asymmetry parameter, g12, versus the polarizing efficiency, N12 (bottom left), and the minimum degree of linear polarization, -b1r↓, versus the corresponding maximum, -b1r↑ (bottom right).
