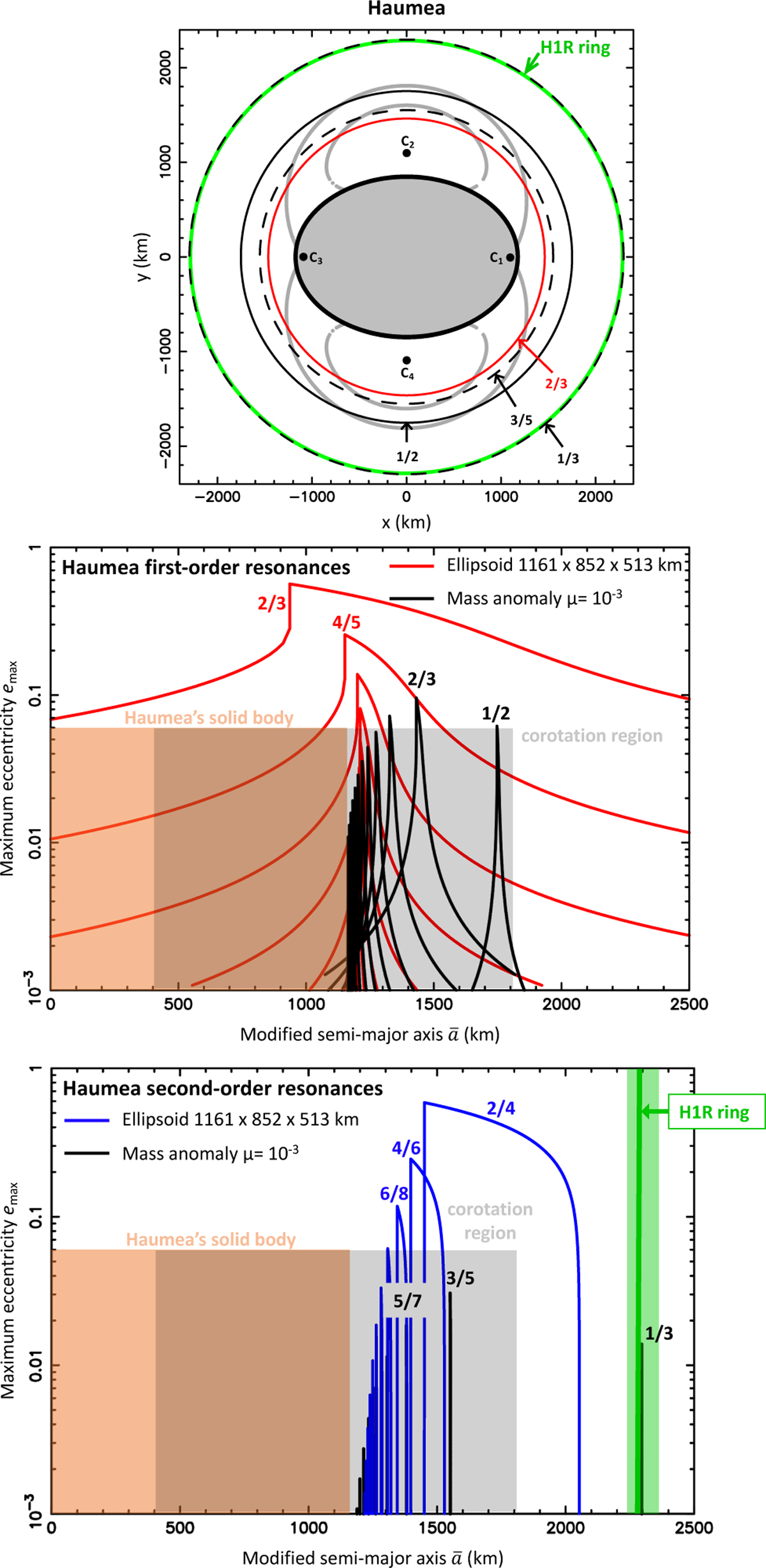

Same as Fig. 7, but for Haumea. Here we use the nomenclature H1R to be in line with the names of Chariklo’s and Quaoar’s rings (C1R, C2R, Q1R, and Q2R). The corotation zone now largely overlaps with the solid body. The uncertainty on the ring radius in the right panel is indicated by the green box, while the uncertainty on the 1/3 resonance radius is negligible at this scale (see Table 2).
