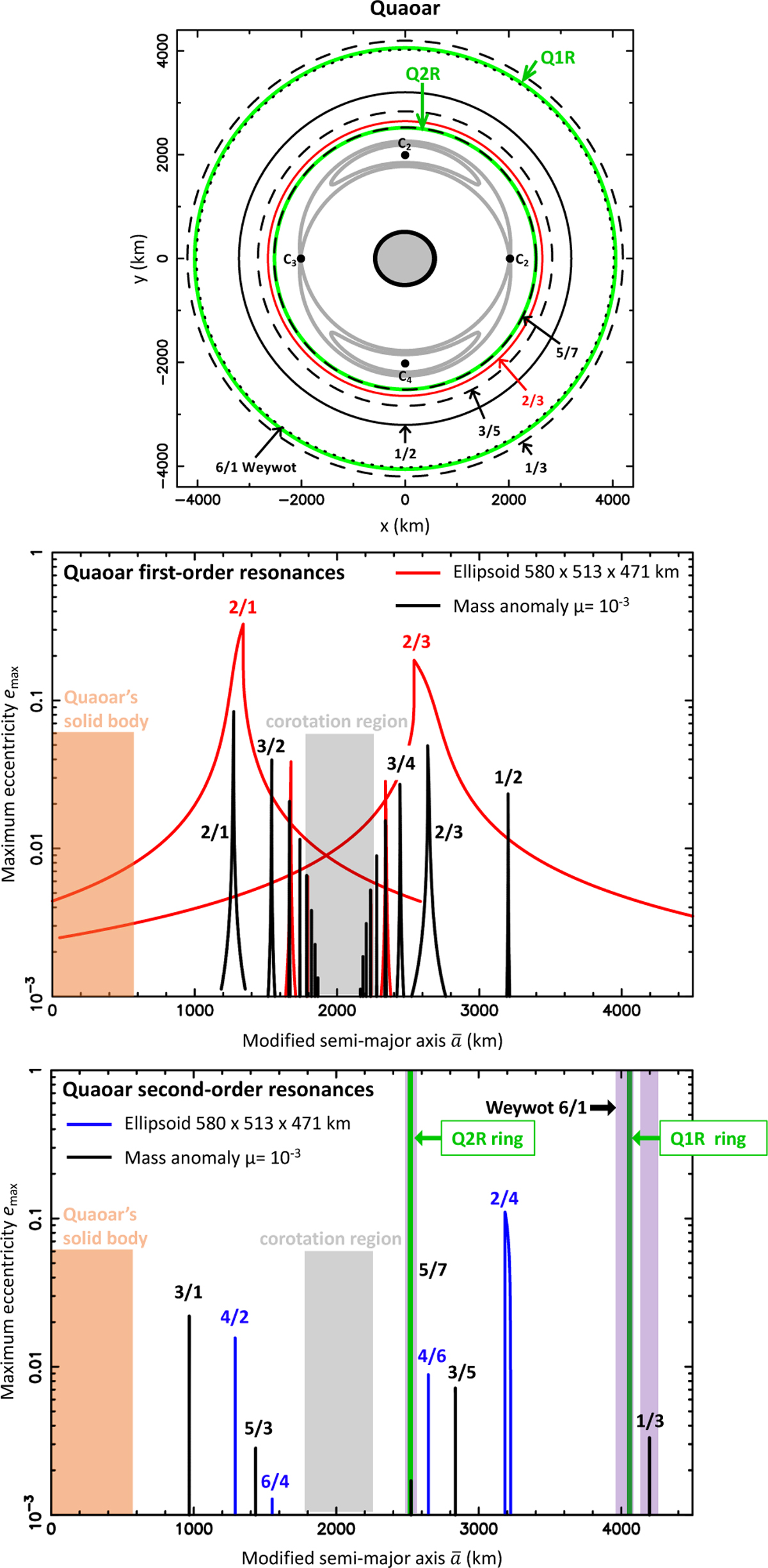

Same as Fig. 7, but for Quaoar, where two resonances have been added in the upper panel: the fifth-order resonance 6/1 with Weywot (the dotted circle close to Q1R), and the second-order resonance 5/7 with Quaoar, the dashed circle close to Q2R. As for Chariklo, the uncertainties on the 5/7 and 1/3 resonance radii (purple boxes in the lower panel) are larger than the uncertainties on the Q1R and Q2R ring radii (see Table 2).
