Fig. A.2
Download original image

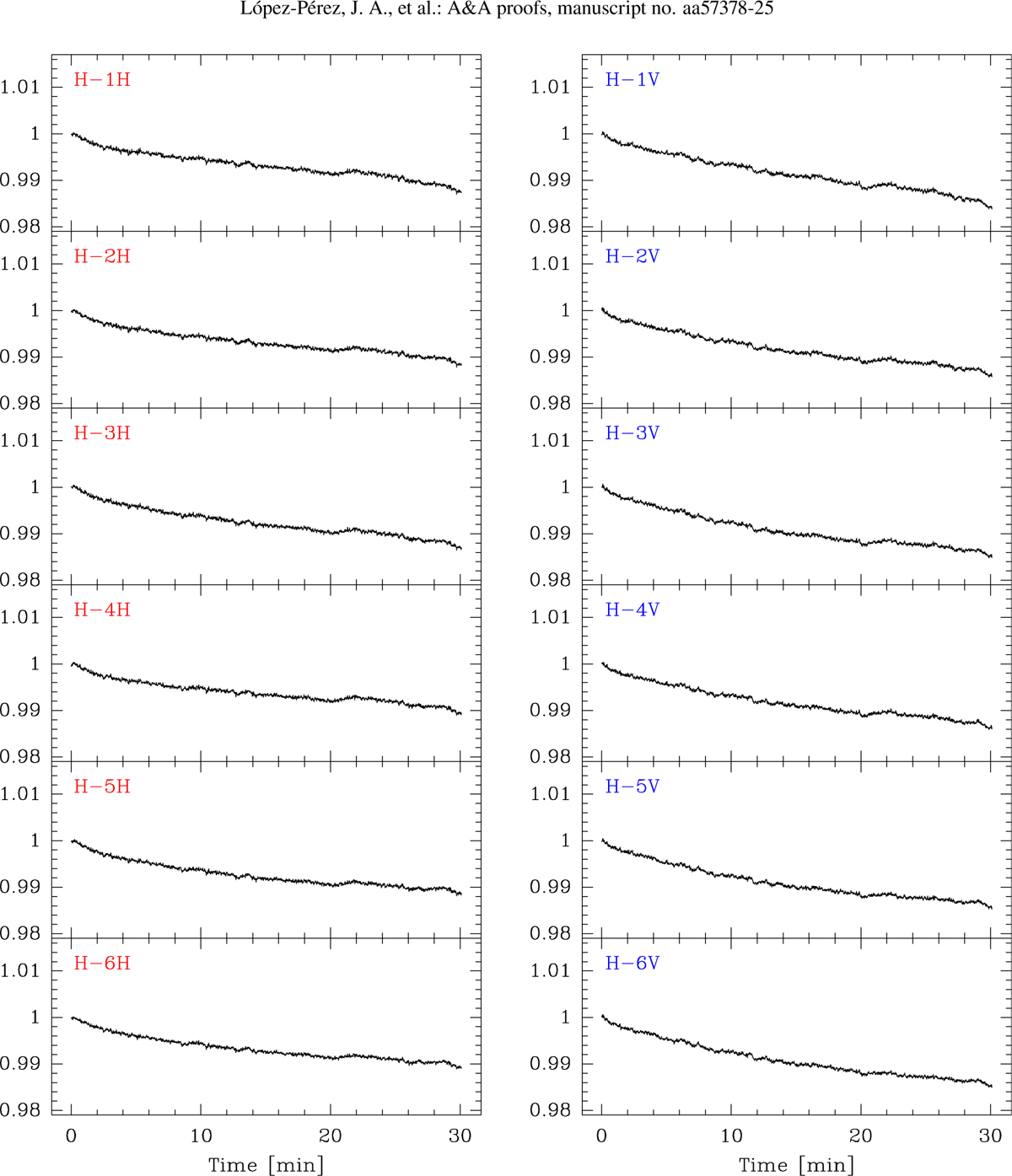

Normalised averaged FFTS back-end counts (1.0 GHz) per time registered in observations of the hot load at the high configuration (26–32 GHz) of the K band. The first column shows the values of the H polarisation whereas the second depicts the V polarisation. Central frequencies for the different FFTS sections are: 26.5, 27.5, 28.5, 29.5, 30.5, and 31.5 GHz for sections 1, 2, 3, 4, 5, and 6, respectively.
