Fig. 4
Download original image

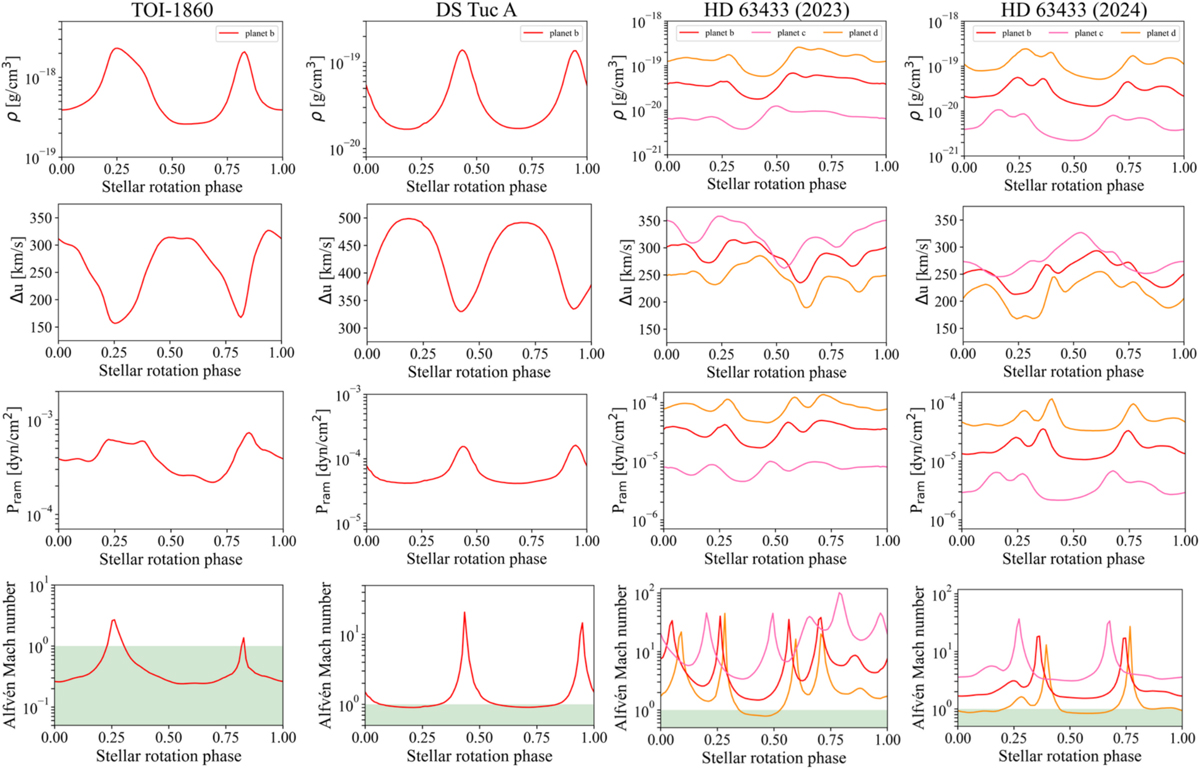

Stellar wind conditions in the planetary frame as a function of stellar rotation phase. From the left, the columns refer to the TOI-1860, DS Tuc A, HD 63433 (2023), and HD 63433 (2024) systems. From the top, the panels show the wind density (ρ), relative velocity (Δu), ram pressure (Pram), and Alfvén Mach number (MA). The sub-Alfvénic regime (MA < 1) of the stellar wind is shown as a green shaded region. In the MA panel of HD 63433, we also show the computation for planet d from 2023 data as a dashed line (see Bellotti et al. 2024).
