Fig. 1.
Download original image

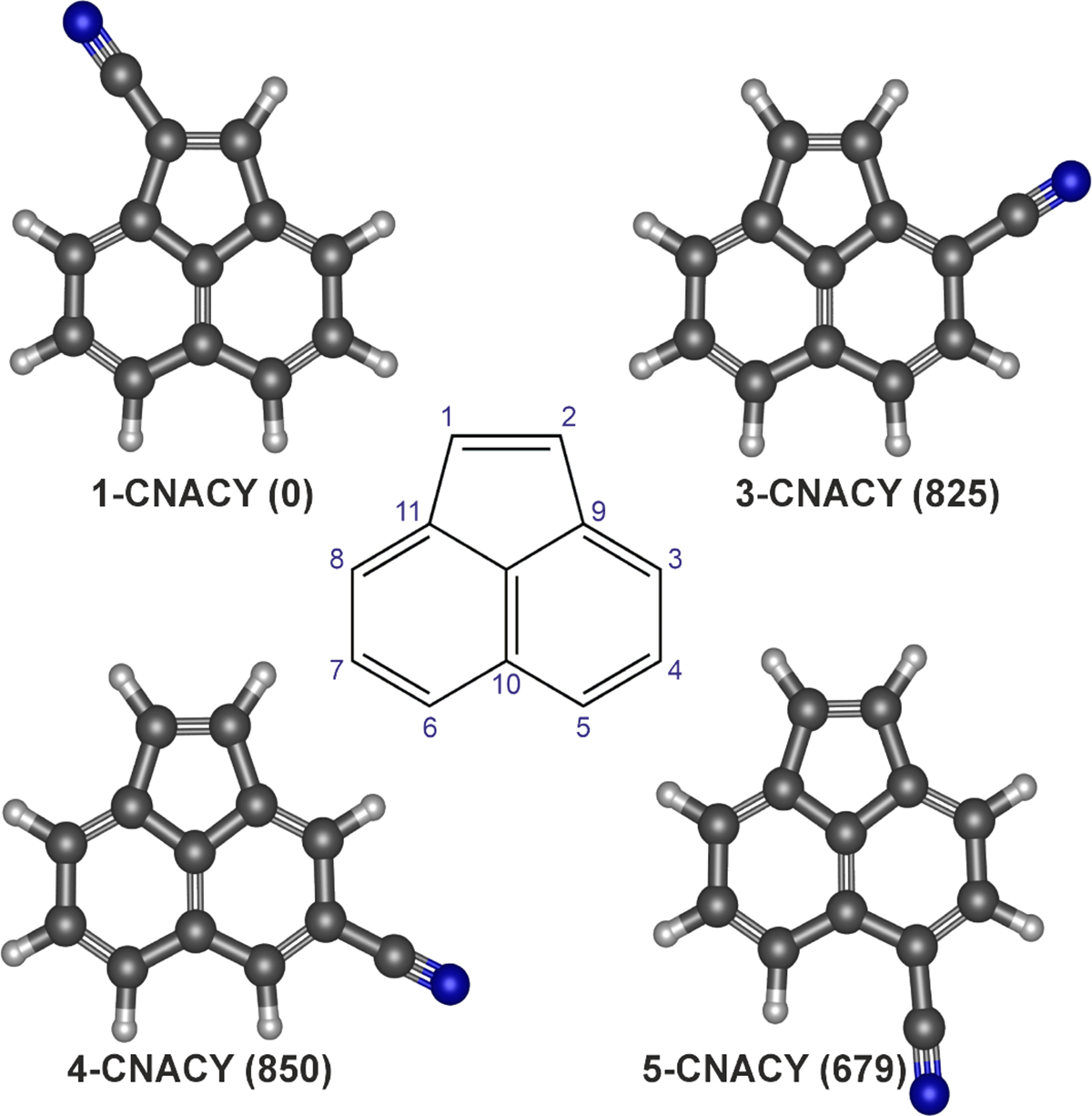

Molecular structures of acenaphthylene (center design) and its cyano derivatives (from Cernicharo et al. 2024b). The numbers label the nitrile substitution positions of the four possible isomers of CNACY and their relative energies are given in parentheses for each isomer (in cm−1). The isomers previously detected by Cernicharo et al. (2024b) are 1- and 5-CNACY. The isomers detected in the present work are 3- and 4-CNACY.
