Fig. 4.
Download original image

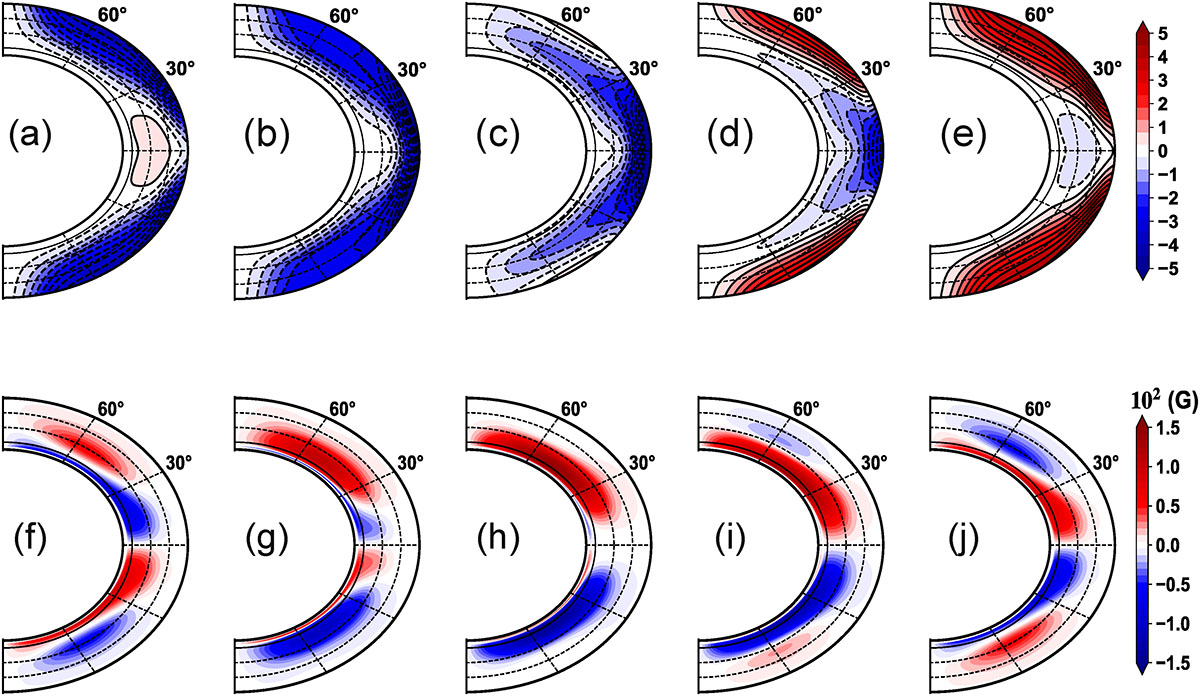

Snapshots of the poloidal field (first row) and toroidal field (second row) over a dynamo cycle for the distributed-shear BL dynamo with the zero radial diffusion outer BC. Solid (dashed) contours in the top panels correspond to clockwise (counterclockwise) poloidal field lines.
