Fig. 9.
Download original image

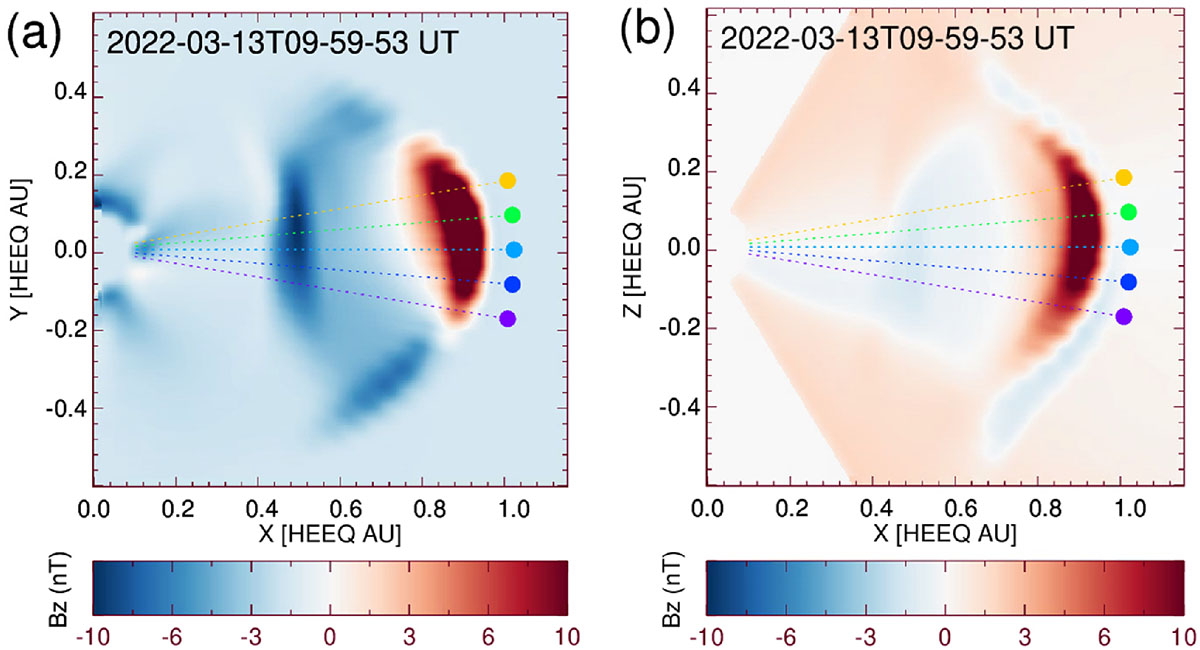

Bz component of the spheromak in HEEQ coordinates shown on (a) the equatorial plane and (b) the meridional plane. The coloured dots indicate the locations of the virtual spacecraft at 1 AU. Adjacent spacecraft are longitudinally separated by 5°. The central dot (cyan) denotes the location of Earth.
