Fig. 12
Download original image

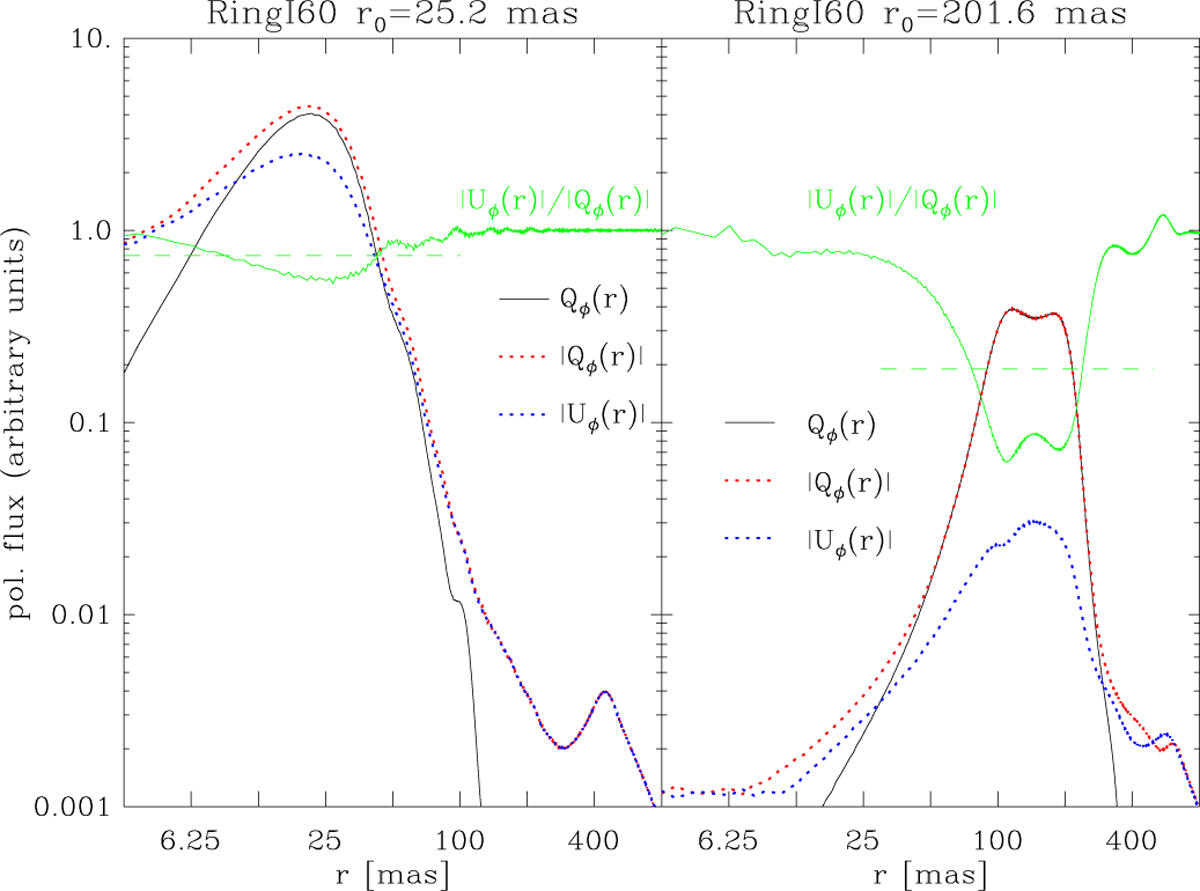

Azimuthally averaged profiles for Qϕ(r), |Qϕ(r)|, and |Uϕ(r)| for the RingI60 models with r0 = 25.2 mas and 201.6 mas convolved with PSFAO. The green curve for the ratio |Uϕ(r)|/|Qϕ(r)| provides a rough measure for the convolution cross talk, and the dashed line indicates the system integrated value Σ|Uϕ|/Σ|Qϕ| from Table D.1.
