Fig. 9
Download original image

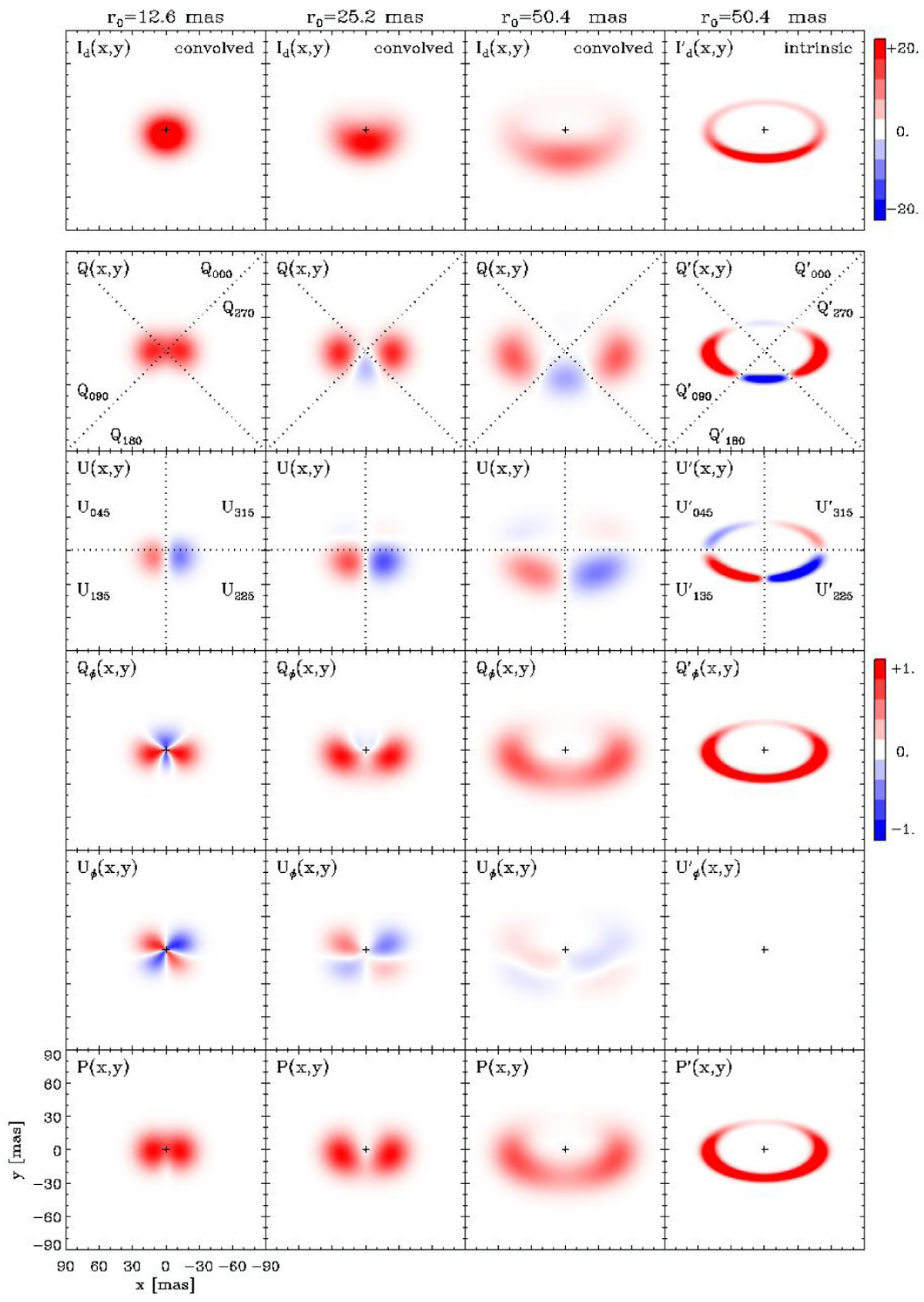

Maps for the intensity Id and polarization Qϕ, Q, U, Qϕ, Uϕ, and P (from top to bottom) for RingI60 models with r0 = 12.6 mas, 25.2 mas, and 50.4 mas after convolution with the Gaussian PSFG (first three columns). The last column gives the same for the intrinsic model with r0 = 50.4 mas. Stokes quadrant parameters are indicated in some Q and U maps.
