Fig. C.4
Download original image

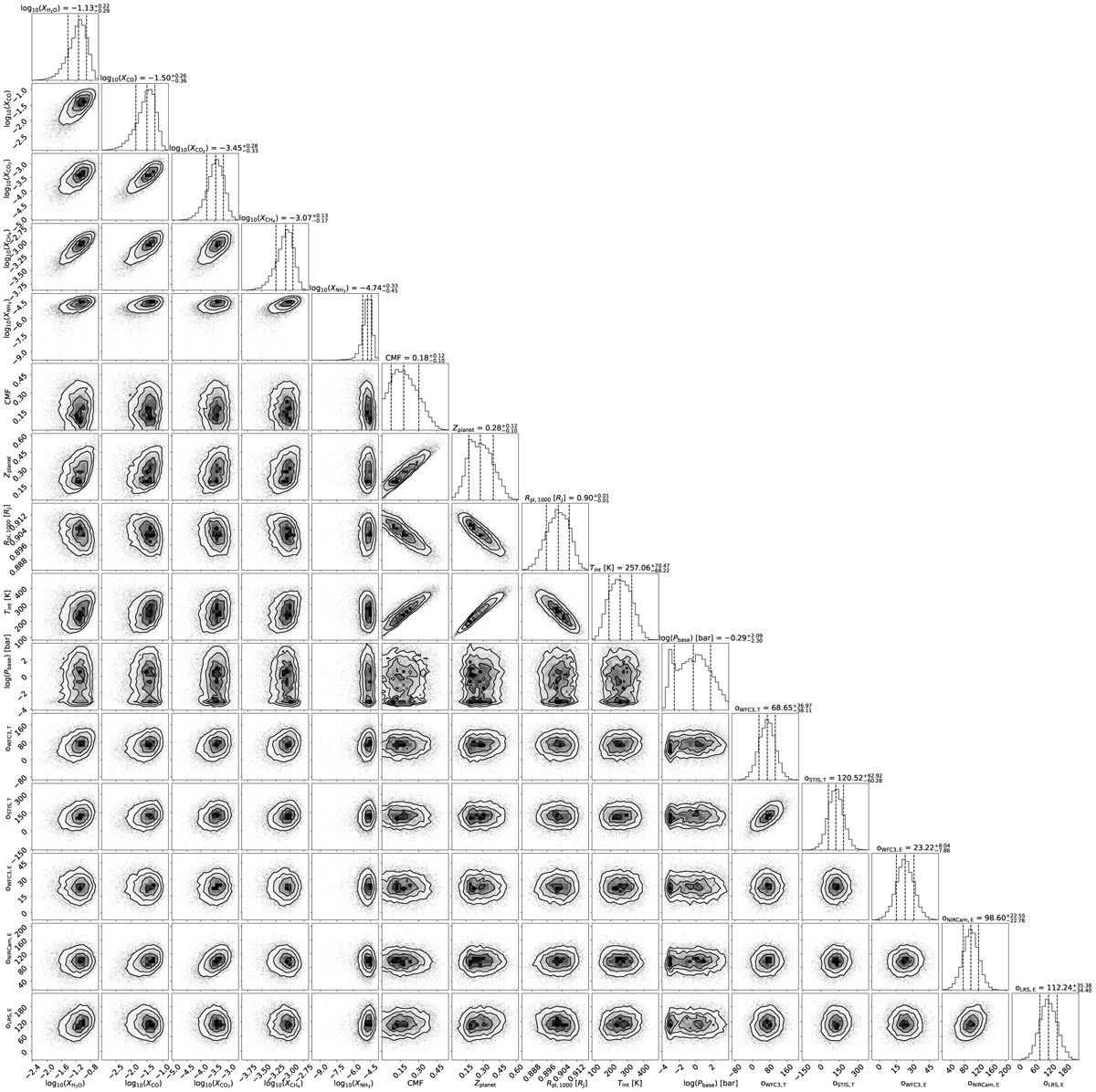

Corner plot for joint retrieval JR5*. The atmospheric abundances of H2O, CO, CO2, CH4 and NH3 are mass fractions. The planet radius, Rvl is evaluated at P = 1000 bar. The spectrum offsets, o, are shown for all instruments (WFC3, STIS, NIRCam, LRS) and both geometries (emission: E; transmission: T). The units of the offsets are parts per million (ppm).
