Fig. 7.
Download original image

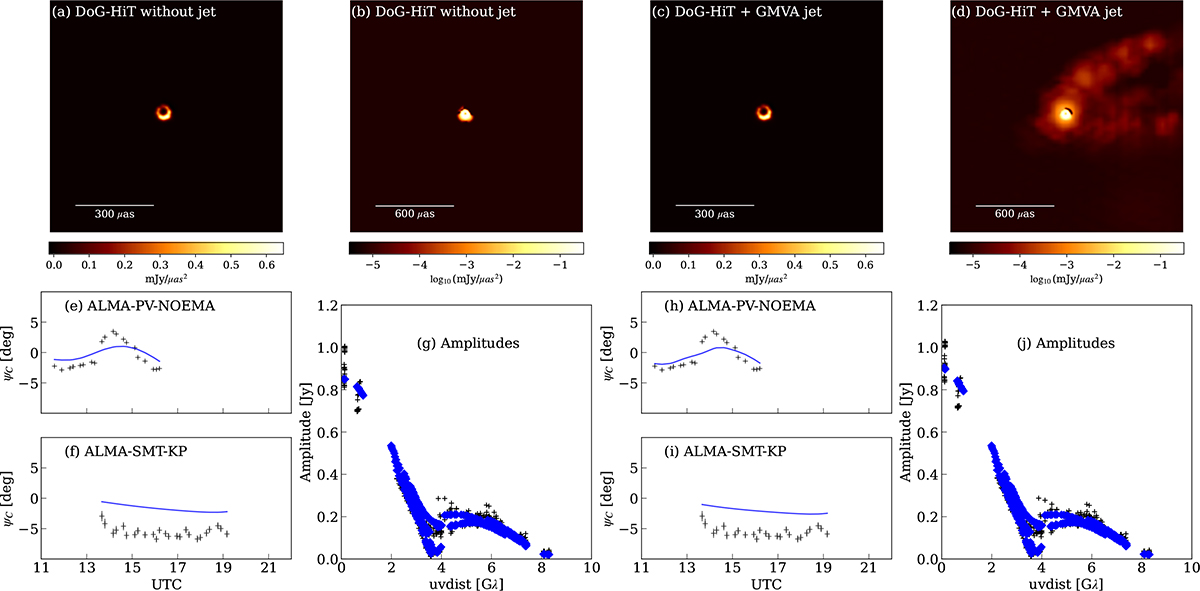

Ring-only DoG-HIT image (first panel, top row: linear scale, second-panel first row: logarithmic scale) compared to the DoG-HIT ring image stacked with the jet observed with the GMVA (third and fourth panel, top row). In the bottom row, we show the fit to the bump and offset in closure phases and the fit to the amplitudes for DoG-HIT (left panels) and for DoG-HIT with the GMVA jet added (right panels).
