Fig. 5.
Download original image

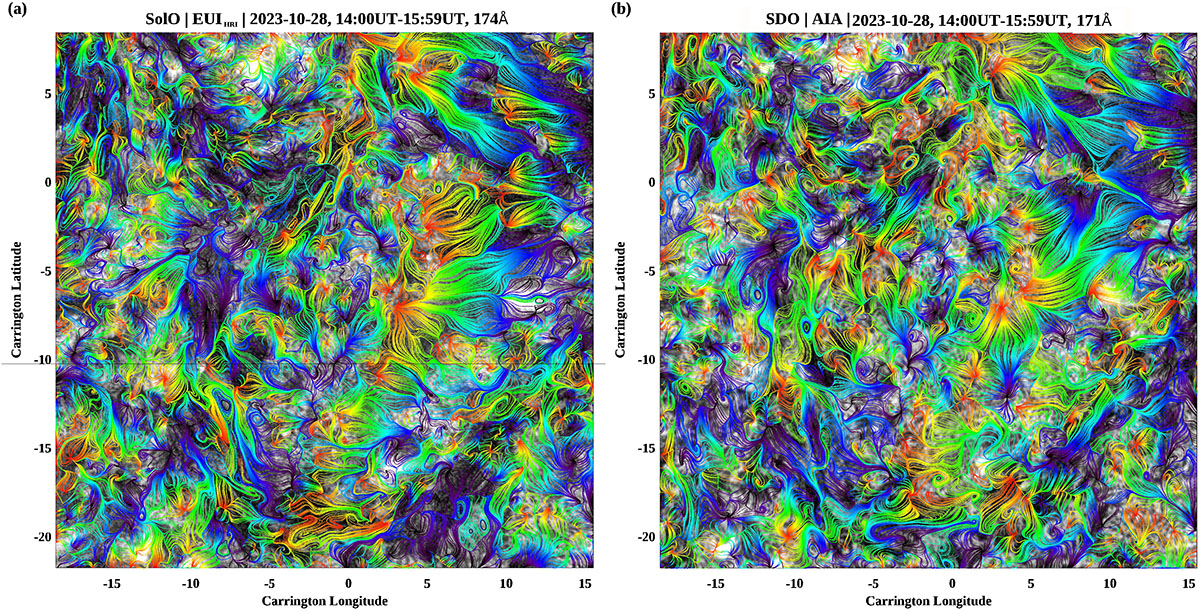

Time-normalised optical flow velocity vector field for the (a) HRIEUV 174 Å and (b) AIA 171 Å channel. The field lines have a rainbow colour scheme to indicate propagation direction, with a field line starting in red and advancing through yellow, green, and blue. The background image is the original intensity image with MGN processing.
