Fig. 6
Download original image

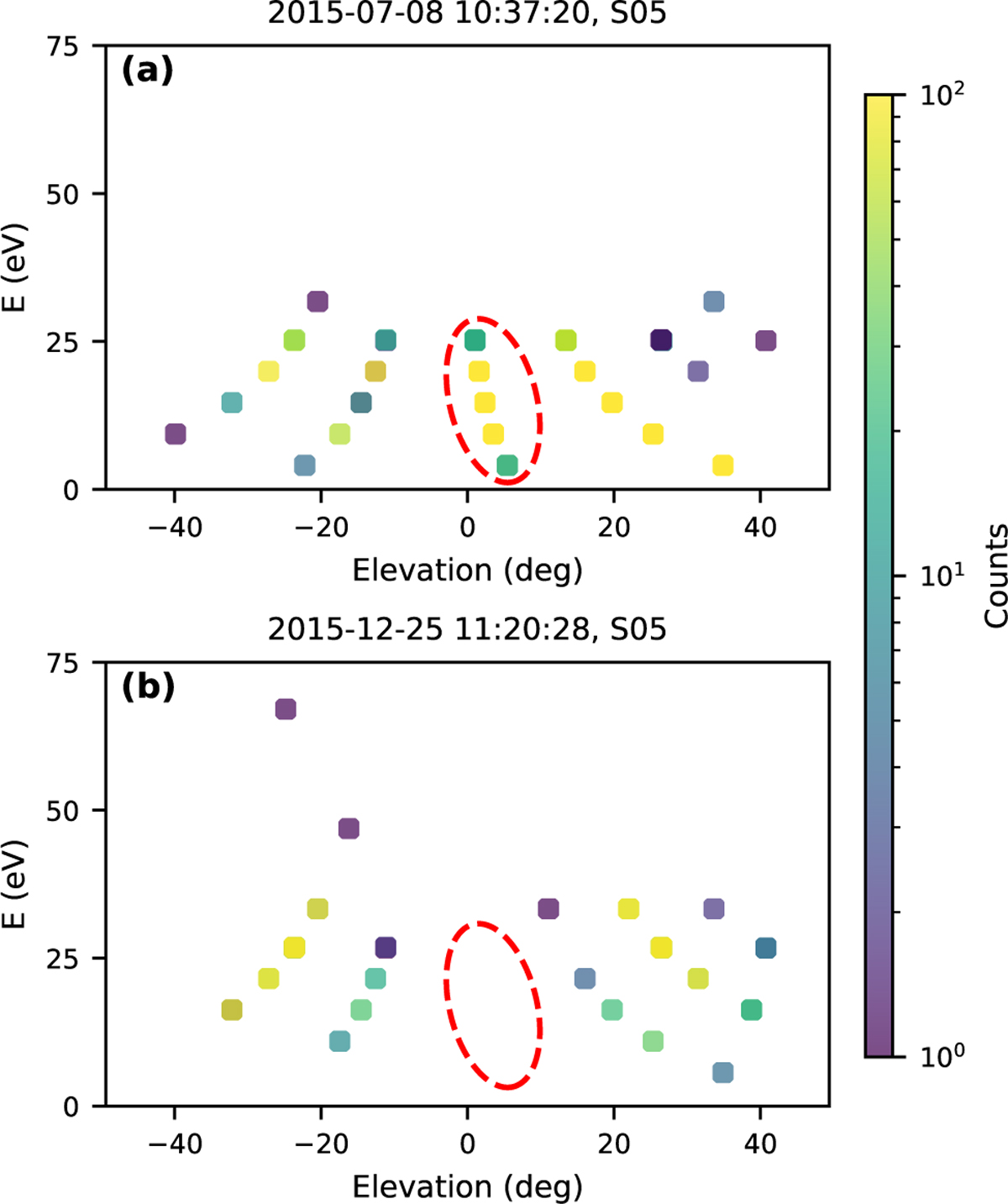

Elevation distribution of low-energy ions from standard-resolution measurements with a corrected energy scale. Panels a and b show the distribution of ion counts in elevation-energy space for the anticometward sector (Sector 5) at two different time points. The field of view (FOV) of the high-resolution mode is outlined by the red dashed ellipse.
