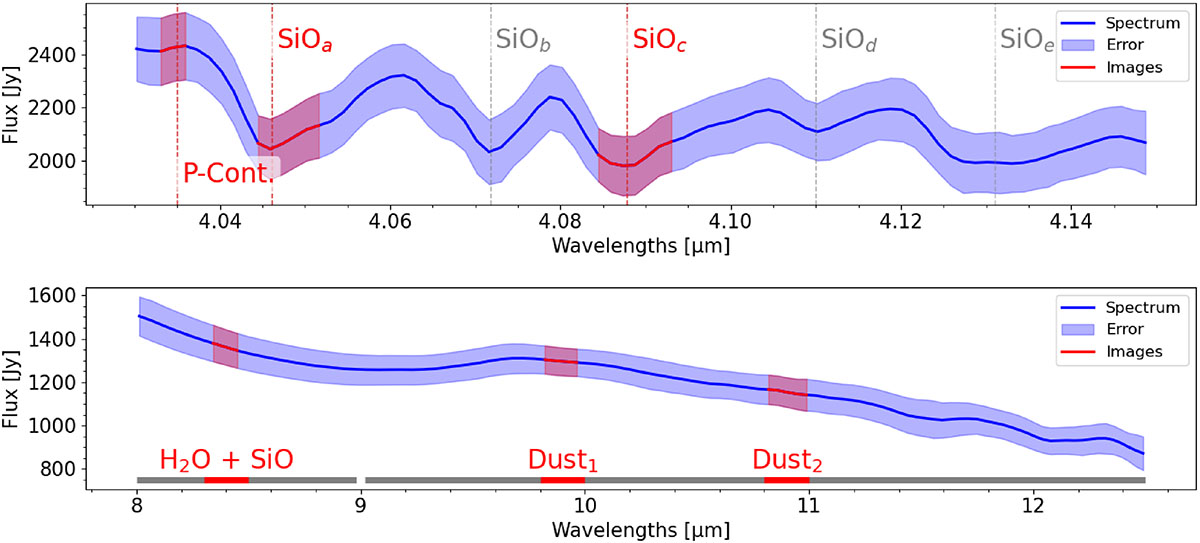

Fig. B.1.
Download original image
Top: Calibrated MATISSE spectrum of the L-band data with, from left to right, the pseudo-continuum (P-Cont.), SiOa: a mixture of the SiO (v = 2 → 0) and SiO (v = 3 → 1) rotational-vibrational band-heads, SiOb: SiO (v = 3 → 1), SiOc: a mixture of SiO (v = 4 → 2) and SiO (v = 3 → 1), SiOd: SiO (v = 4 → 2), and SiOe: a mixture of SiO (v = 5 → 3) and SiO (v = 4 → 2). Bottom: Calibrated MATISSE spectrum of the N-band data with the main chemical elements contributing to the emission on top of the continuum estimated by Sacuto et al. (2008) with Dust1 and Dust2 corresponding to both a mixture of silicates and alumina. For each band, the red section represents the part of the spectrum used to make the various image reconstructions. For the L band the vertical dashed lines represent the central part of the respective spectral absorption signature.
