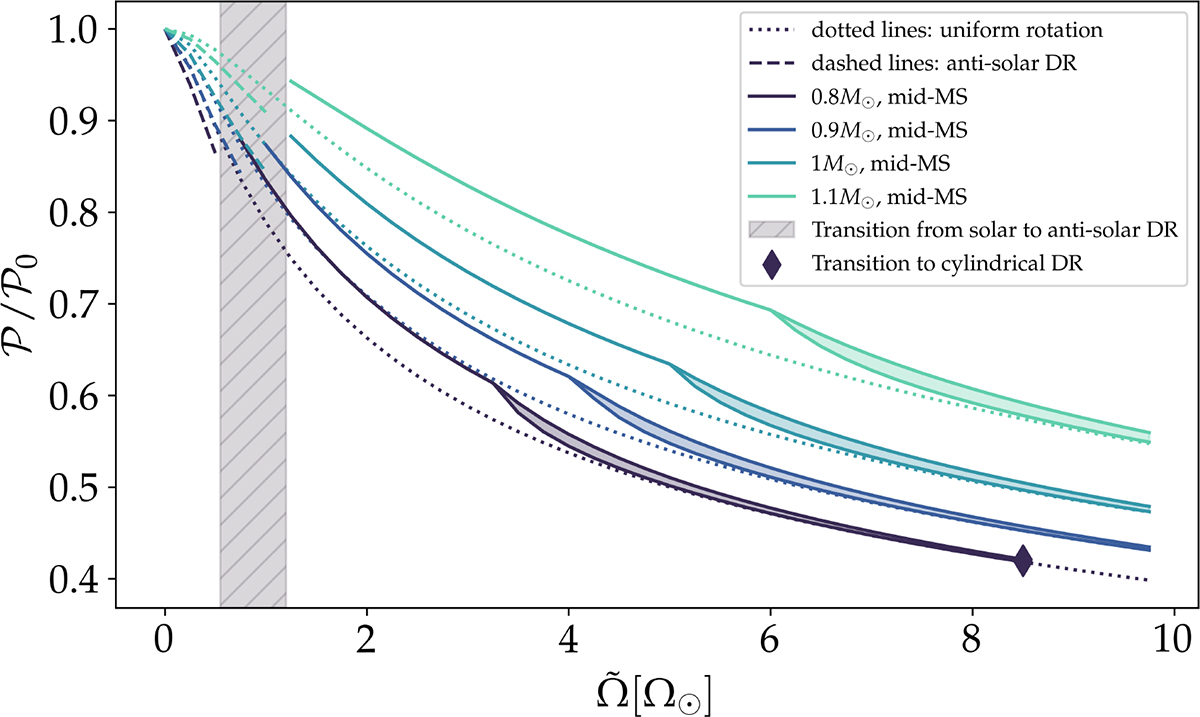

Relative power injected into the oscillations with rotation compared to the non-rotating case for mode (ℓ = 0, n = 7, m = 0) using the scalings given in Eqs. (24) and (25). The dashed line represents the anti-solar DR regimes. As in Fig. 8, from $\stackrel{\sim }{\mathrm{\Omega }}\sim 5{\mathrm{\Omega }}_{\odot }$, we propose a minimum and maximum value depending on the choice for the exponent p in Eq. (24), highlighted with the color zones. The dotted lines represent the uniform rotation case. The hatched grey zone highlights the transition between solar and anti-solar DR regimes. Finally, the diamond symbol marks the transition to the cylindrical DR.
