Fig. 8

Fig. 8 Refer to the following caption and surrounding text.

Download original image

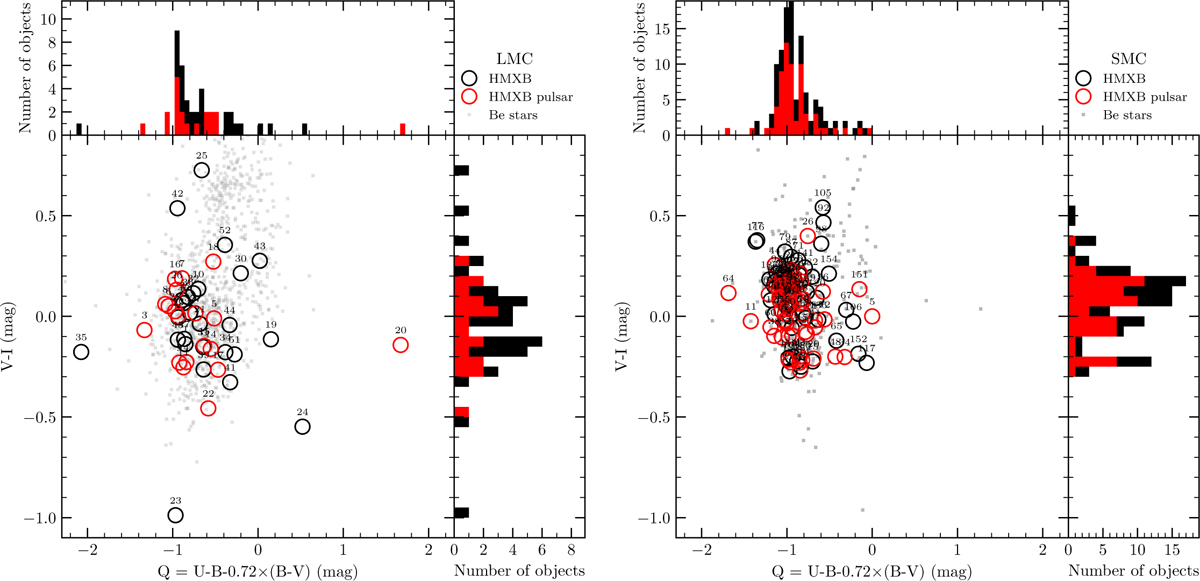

V−I over Q plotted for the optical companion stars in (candidate) HMXBs (black circles) and HMXBs with X-ray pulsar (red circles) as detected during eRASS1 in the LMC (left, labelled by source number from Table 5). Be stars (V<18 mag) from the list of Sabogal et al. (2005) are marked as faint grey dots. For comparison, the same is plotted for the SMC (right, source numbers from Haberl & Sturm 2016 and Be stars from Mennickent et al. 2002). The larger spread in the LMC compared to the SMC is evident in all systems.
