Fig. A.3

Fig. A.3 Refer to the following caption and surrounding text.

Download original image

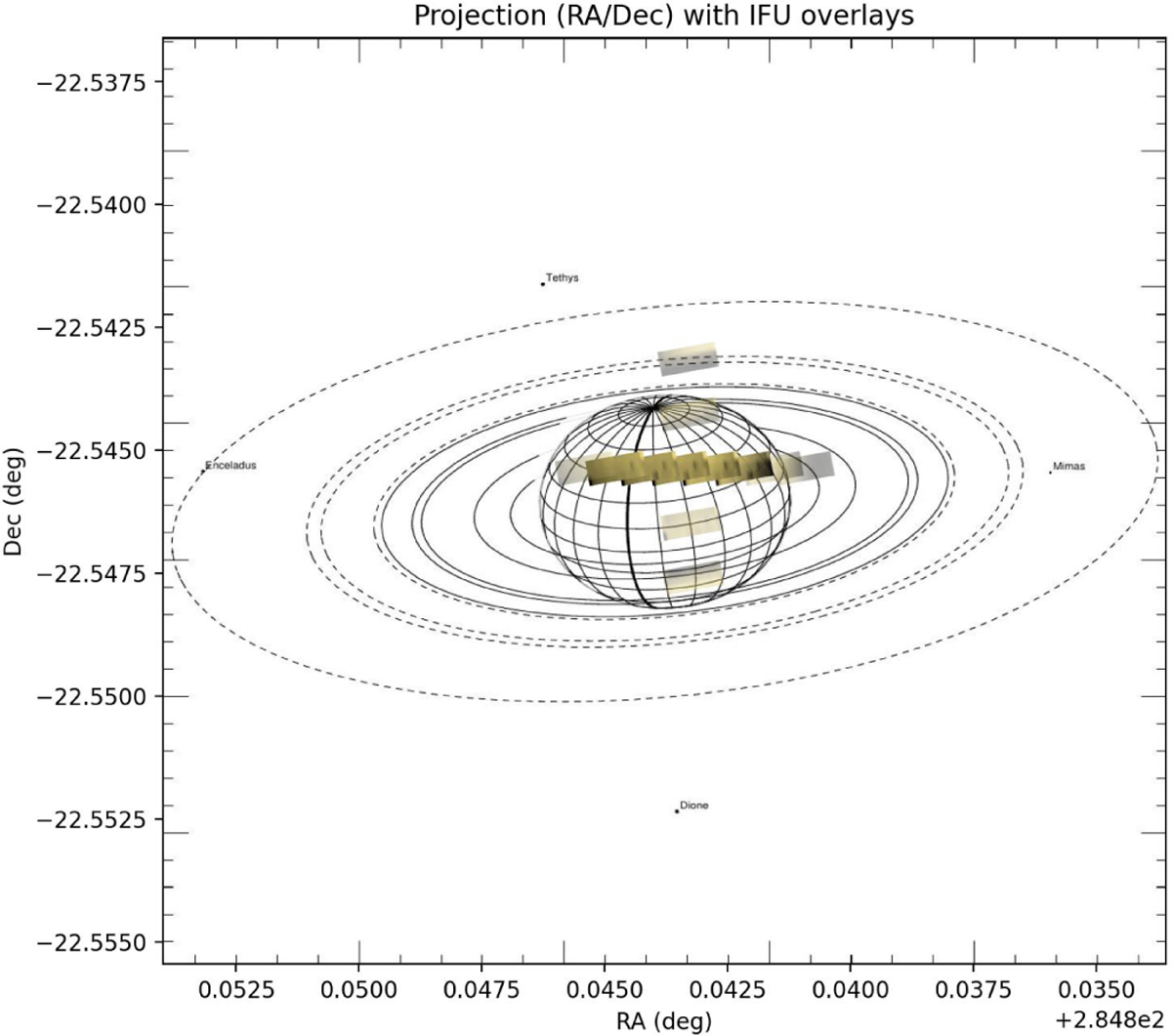

X-shooter IFU mosaic over a wireframe of Saturn. Each rectangular footprint represents a single IFU pointing overlaid on a schematic projection of Saturn and its rings. Observations sample both latitudinal and longitudinal sections of the planetary disk. Eleven exposures were selected for the final spectrum, chosen to avoid contamination from Saturn’s ring system, while the remainder of the offsets have been grayed out. The orientation and coverage reflect the IFU’s 4″×1.8″ field of view. Several of Saturn’s inner moons are labeled for reference.
