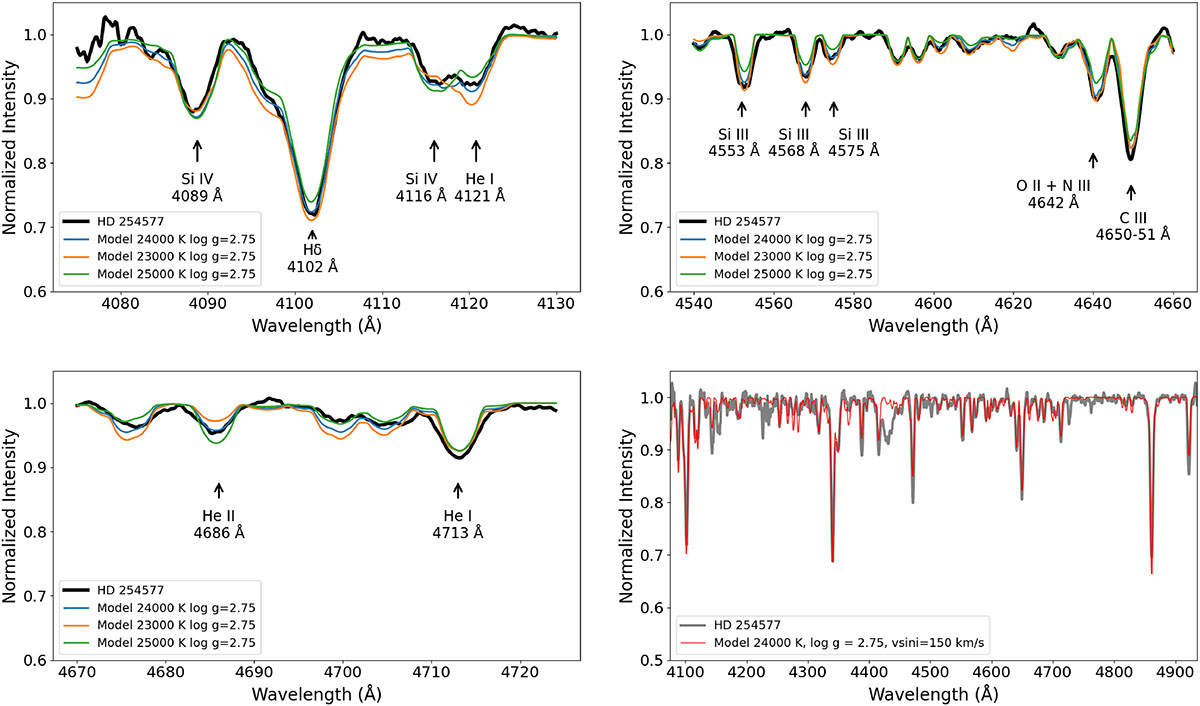

Fig. 2.
Download original image
Spectrum of HD 254577 with the overlaid model spectra of Teff = 23 000, 24 000, and 25 000 K with a fixed surface gravity of log(g [cm/s2]) = 2.75, a projected rotation velocity of v sin i = 150 km s−1, and a single micro-turbulence velocity of ξ = 10 km s−1. Top Left: Wavelength range of 4075 − 4140 Å. Si IVλ4089, 4116 lines are prominent temperature indicators. The spectrum is consistent with the Teff = 24 000 K model at the Si IVλ4116/ He Iλ4121 ratio. Top Right: Wavelength range of 4540 − 4660 Å. The spectrum is once again consistent with the T = 24 000 K model at the Si IVλ4089/ Si IIIλ4553 ratio. Bottom Left: Wavelength range of 4670 − 4725 Å. The spectrum is once again consistent with the Teff = 24 000 K model at the He IIλ4686/ He Iλ4713 ratio. Bottom Right: Spectrum of HD 254577 with the model spectrum of Teff = 24 000 K, log(g [cm/s2]) = 2.75, and ξ = 10 km s−1 overlaid.
