Fig. 3.

Fig. 3. Refer to the following caption and surrounding text.

Download original image

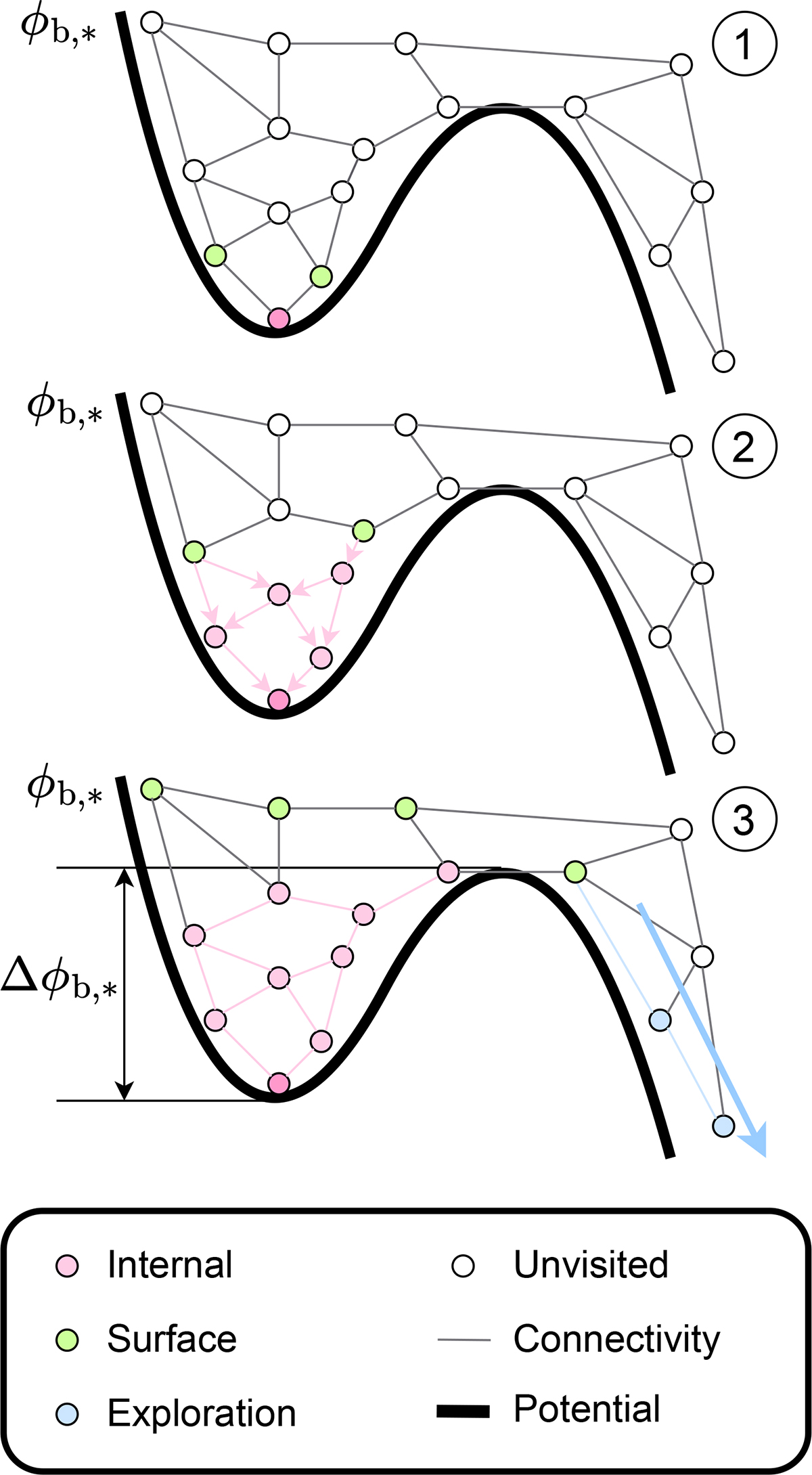

Illustration of main particle assignment scheme implemented in STRAWBERRY. We start by defining the turn around boosted potential, ϕb, *, shown as a thick black line, and assigning the connectivity, thin grey lines, between the particles, drawn as circles. We then place ourselves at the bottom of the potential well and defining the group within the well, pink particle, and tracking particles adjacent to this group, in green, also known as surface particles. In the second panel, we grow the pink group by including surface particles if all of their neighbours with lower potentials are also part of the group. In the third panel, we stop growing the group as we have found a surface particle, to the right, which is connected to particles, in blue, which lead to a deeper potential valley. This final particle sets the persistence of the group, Δϕb, *.
