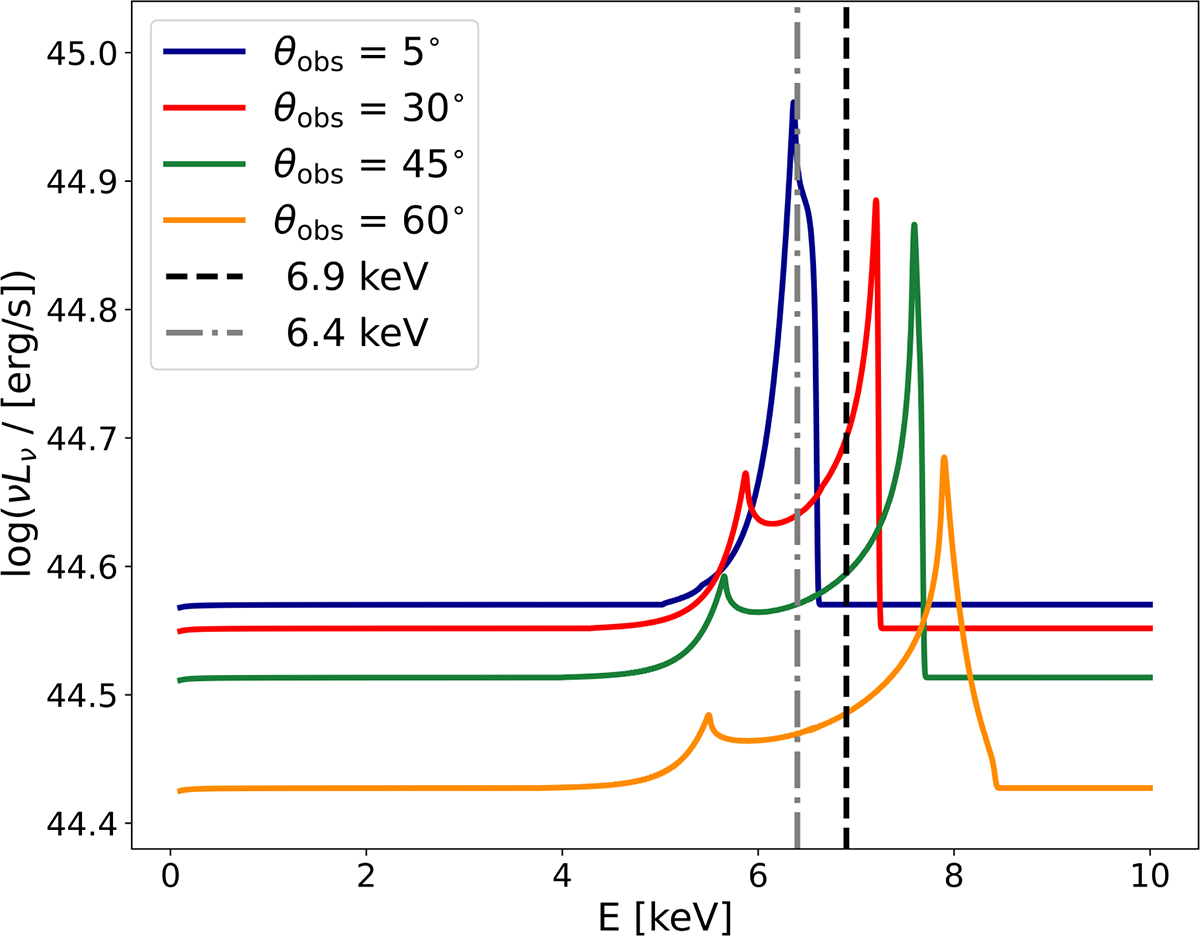

Fig. A.1.
Download original image
Spectrum generated by GYOTO for various viewing angles, computed for an injected single Gaussian line with μ = 6.9 keV and σ = 10 eV. The computations have been made for a non-spinning black hole with 108 M⊙, and for an integration disk surface from rin = rISCO + 1 to rout = 25 rg. The equivalent width was chosen as 600 eV and was kept constant at all radii. The vertical dashed black line depicts the 6.9 keV, while the vertical dash-dotted gray line depicts 6.4 keV.
