Fig. 10.
Download original image

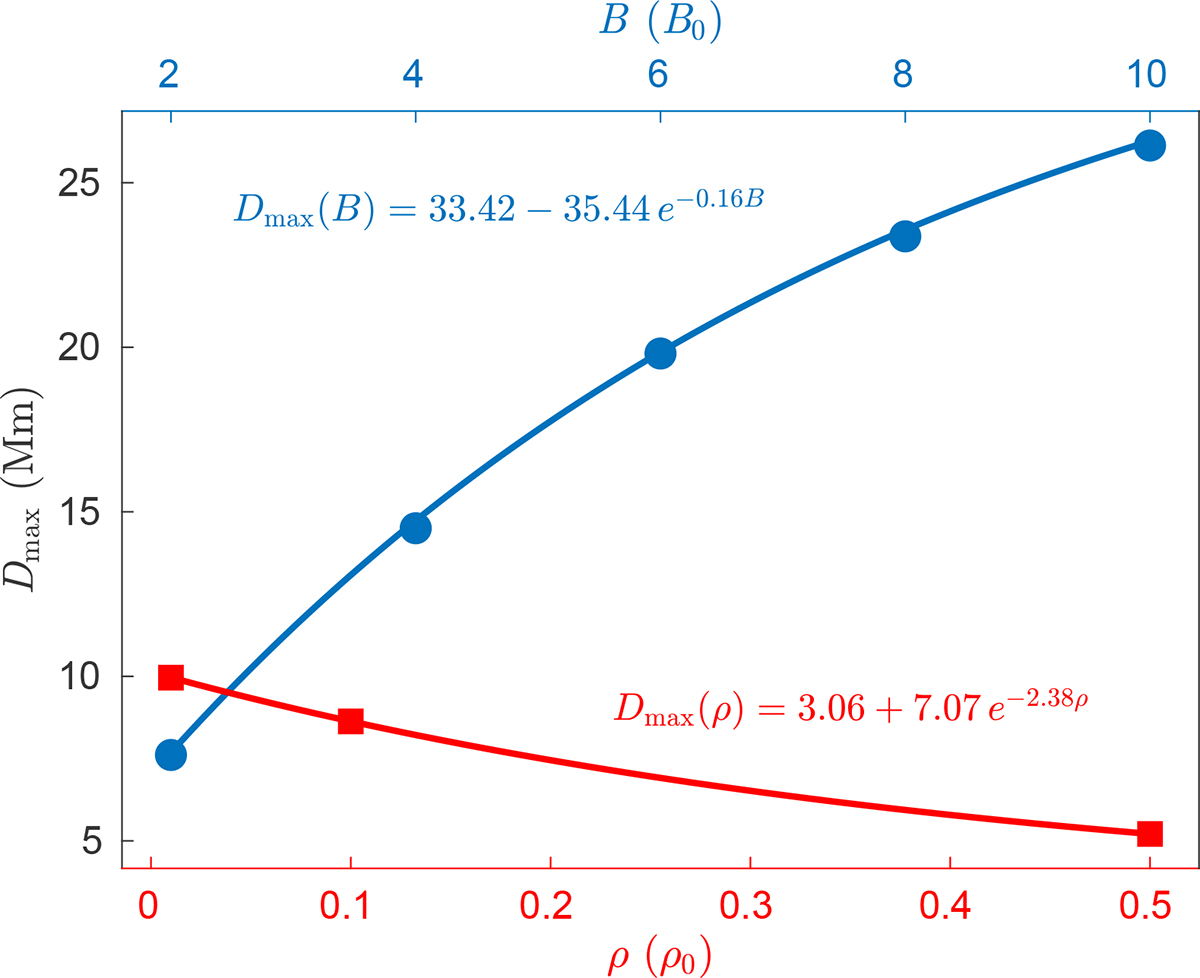

Maximum distance Dmax between the upper and lower magnetic-structure centres (with Bx = By = 0) as a function of multiplication of the initial magnetic field (2 B0, 4 B0, 6 B0, 8 B0, and 10 B0, with B0 = 10−3 T; top x axis) and as a function of the filament density dilution (0.01 ρ0, 0.1 ρ0, and 0.5 ρ0, where ρ0 is the initial density in the filament; bottom x axis).
