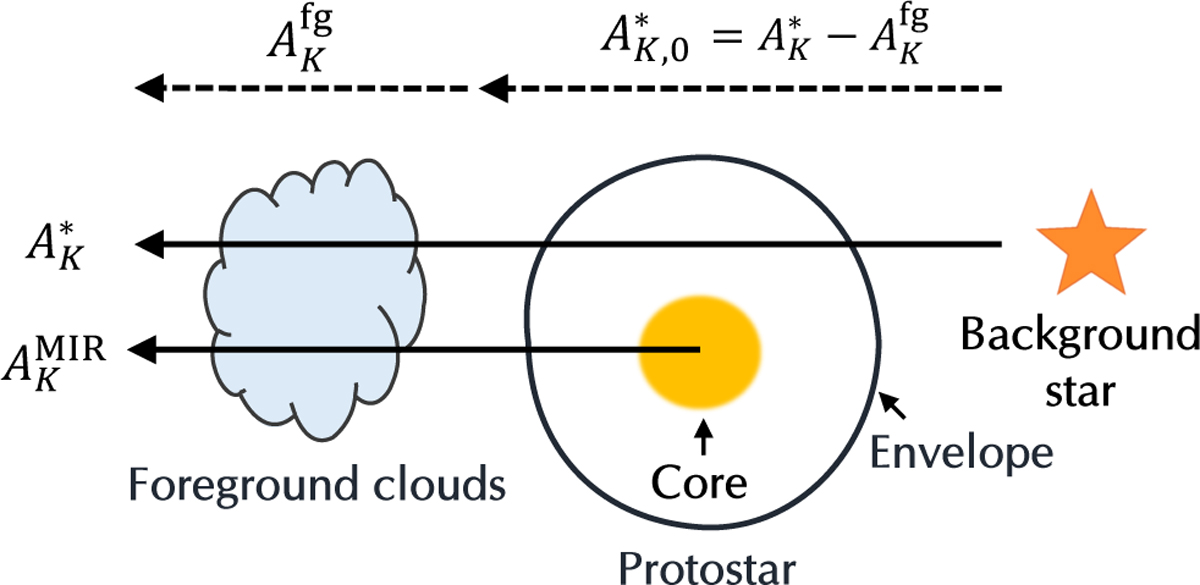

Schematic illustration of the light-ray geometry probed by the composite spectra. A*K reflects extinction constrained mainly by the near-IR, while AKMIRMathematical equation: $\akmid$ is determined primarily from the mid-IR. The quantity AKfgMathematical equation: $A_K^{\mathrm{fg}}$ represents the foreground extinction estimated from nearby source-free regions, which accounts for dust located along the line of sight in the Galactic disc and within the CMZ. The envelope-only extinction, AK,0Mathematical equation: $\akred$, is defined as AKAKfgMathematical equation: $\akstar - A_K^{\mathrm{fg}}$, isolating the extinction produced by material within the protostellar envelope along the sightline to the background star.
