Fig. 6.
Download original image

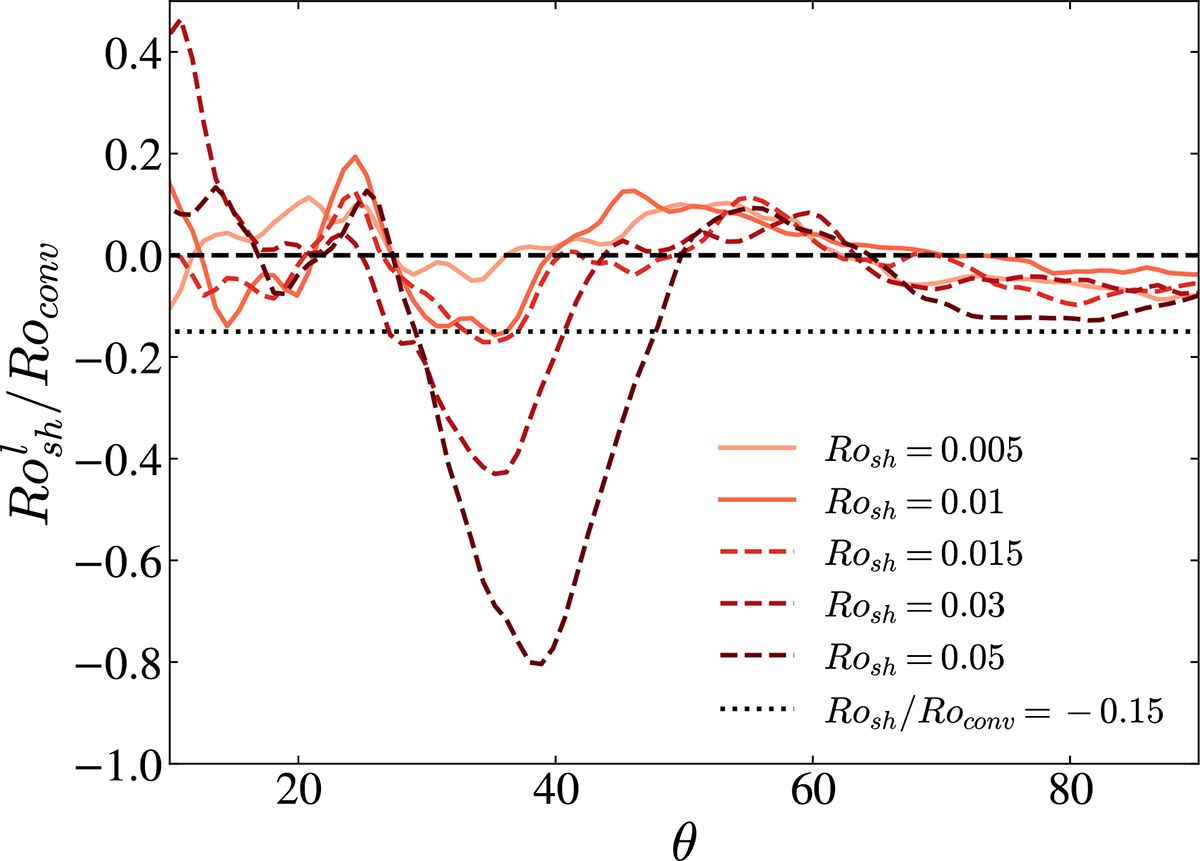

Ratio of the local radial shear to the local convective Rossby number as a function of latitude (in degree) at the midgap, r/ro = 0.5, for varying Rosh. Solid lines denote stable dipolar states, with magnetic topology as depicted in Fig. 5a, and dashed lines denote collapsed dipoles as those depicted in Fig. 5b.
