Fig. 6
Download original image

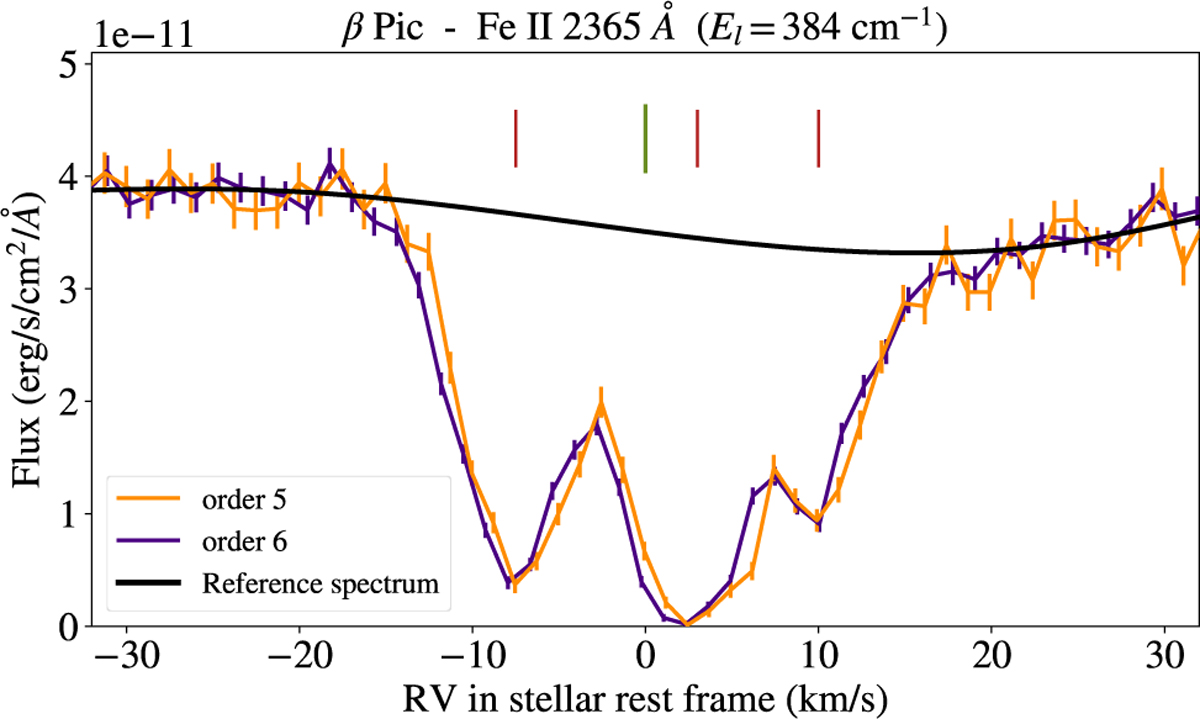

View of the Fe II line at 2365 Å, covered by two orders of the same STIS spectrum. A clear wavelength offset is visible between the two orders; here order #5 is found to be redshifted by 0.5 km/s compared to order #6. The red and green ticks respectively mark the RV of the three LVCs and the disc.
