Fig. 9
Download original image

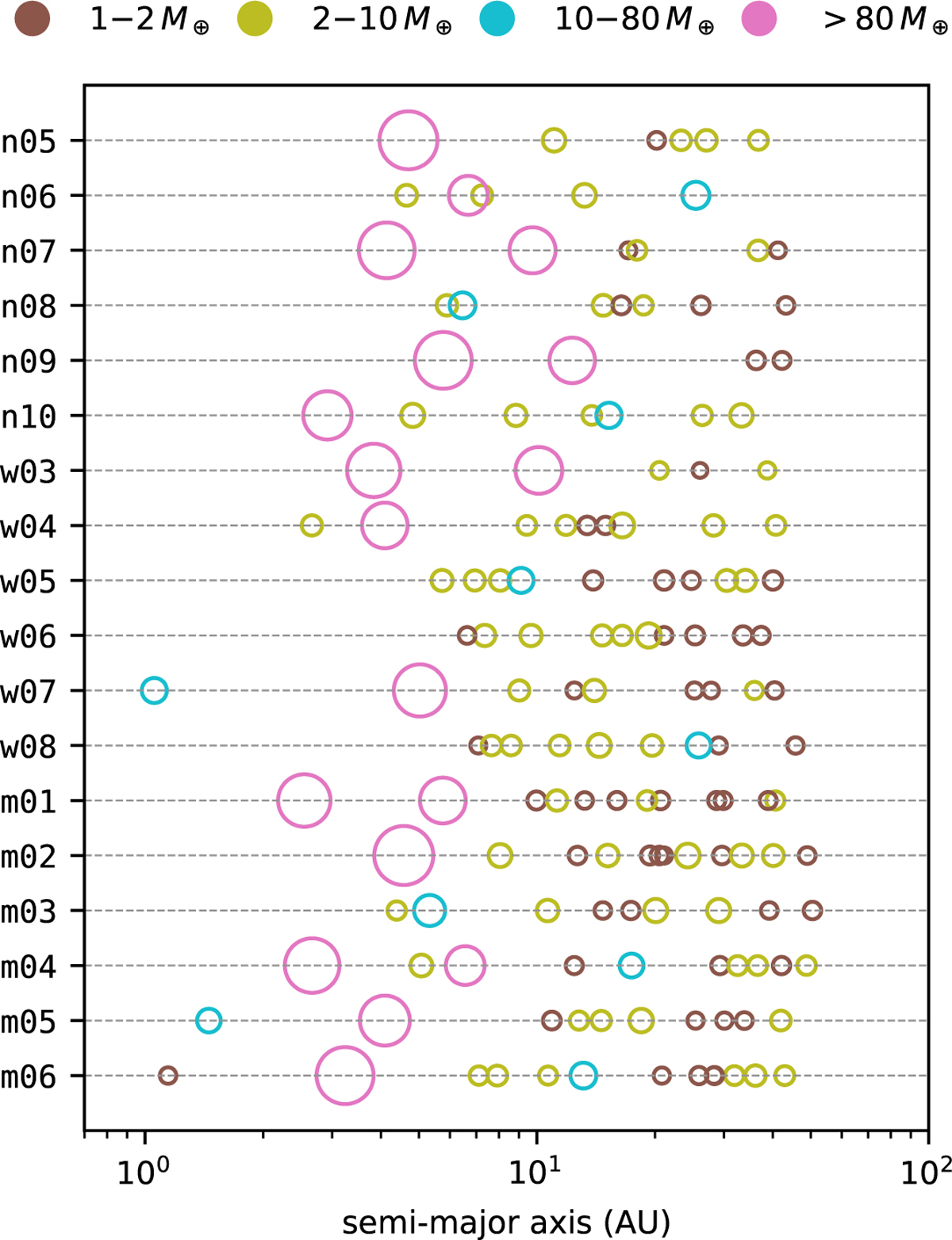

Configuration of planets at 4.1 Myr. Each row shows the configuration of planets ≥1 M⊕ at 4.1 Myr. The runs we show are as follows: narrow ring runs (n05-n10, top), wide ring runs (w03-w08, middle), and high-mass ring runs (m01-m06, bottom). The symbol size scales with the mass of the body as ∝m1/3, and the colour indicates the mass category.
