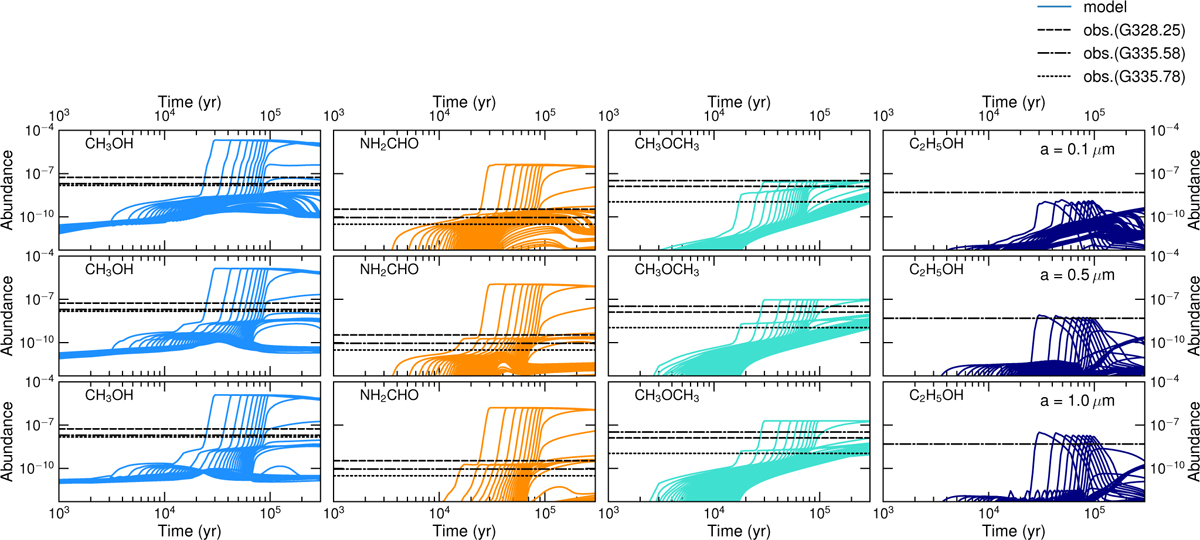

Fig. C.1
Download original image
Time-dependent behaviour of COMs (lines, colour-coded by distance as in Figure 5) compared with measurements (horizontal black lines) taken from three infrared-quiet massive galactic clumps (G328.25, G335.58, and G335.78) with L = 104 L⊙. To better explain all the COM abundances reported for G335.58 (including C2H5OH), the average grain size is shown to be larger than the typical grain size of 0.1 μm in the diffuse ISM.
