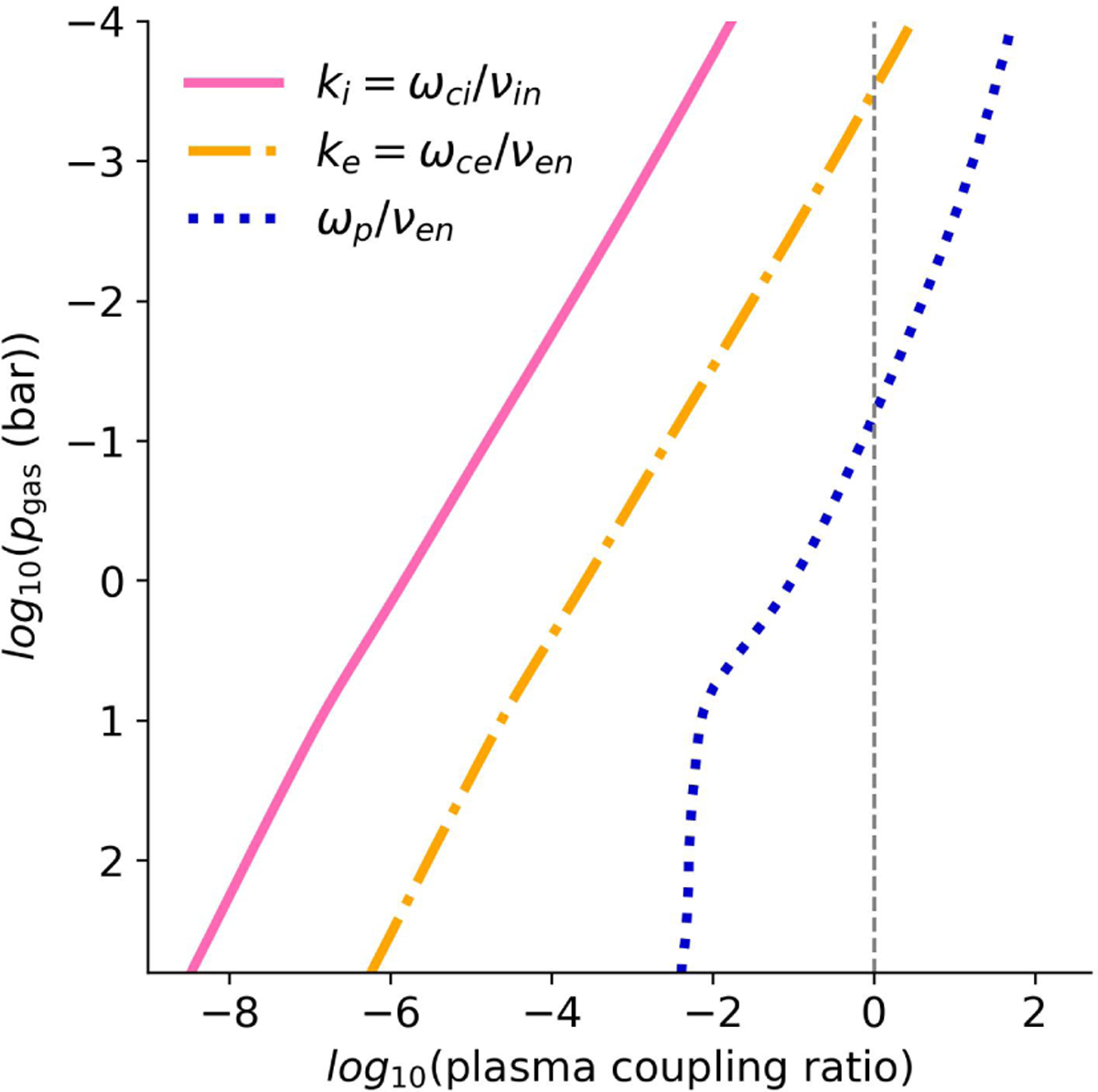

Fig. 2
Download original image
Magnetization parameter (Eq. (21)) profiles for ions (ki) and electrons (ke) averaged over all latitudes and over dayside atmosphere (−90◦< ϕ ≤ 90◦). The dotted blue line (ωpe/νen) shows the relation between the electron plasma frequency and the electron–neutral collision frequency averaged over the dayside atmosphere. The plasma coupling ratios were calculated from the ExoRad simulation for WASP-18 b with anisotropic drag. The dashed gray line shows where the plasma coupling ratio reaches unity.
