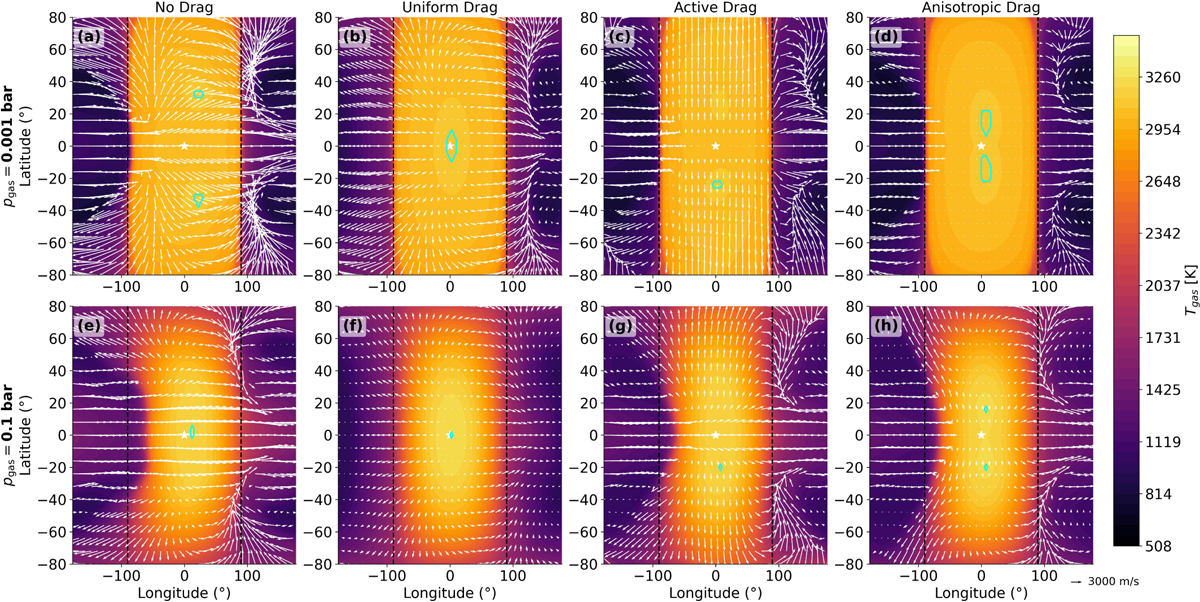

Maps of gas temperature and velocity field at two gas pressure levels (p_gas = 0.1 bar and p_gas = 0.001 bar) for the four different magnetic drag treatments. The substellar point is centered at each map and is marked with a white star. The velocity field is shown by the white arrows. The length of the arrow scales with the relative wind velocity. The vertical dashed black lines mark the area at longitude ±90^◦. The cyan contours represent the hotspot region (T_gas,max, T_gas,max − 1K) with T_gas,max being the largest temperature for the chosen pressure level. The temperature is time-averaged over 100 days of simulation time to eliminate the small-scale fluctuations.
