Fig. 9.

Fig. 9. Refer to the following caption and surrounding text.

Download original image

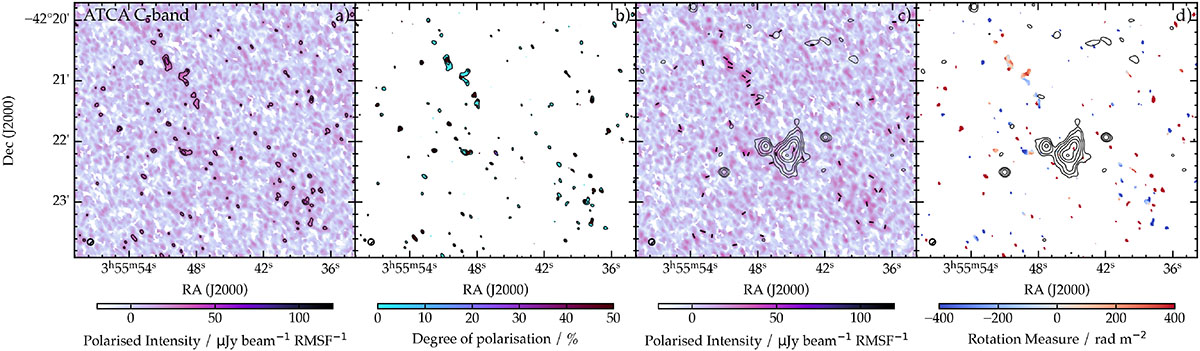

Panel a): Polarised intensity at 5430 MHz with contours starting at 3σPI and increasing by 2 Mathematical equation: $ \sqrt{2} $ (σPI = 8.39 μJy beam−1 RMSF−1). Panel b): Fractional polarisation at 5430 MHz with PI contours as in panel a). Panel c): Polarised intensity with total intensity contours at 5430 MHz starting at 3σ and increase by a factor of two (σ = 11 μJy/beam). The magnetic field orientations are shown in black and scale with the polarised intensity. Panel d): Foreground-corrected rotation measure with total intensity contours as in panel c). For each panel, the circular beam of 6″ appears in the lower left corner.
