Fig. 2.

Fig. 2. Refer to the following caption and surrounding text.

Download original image

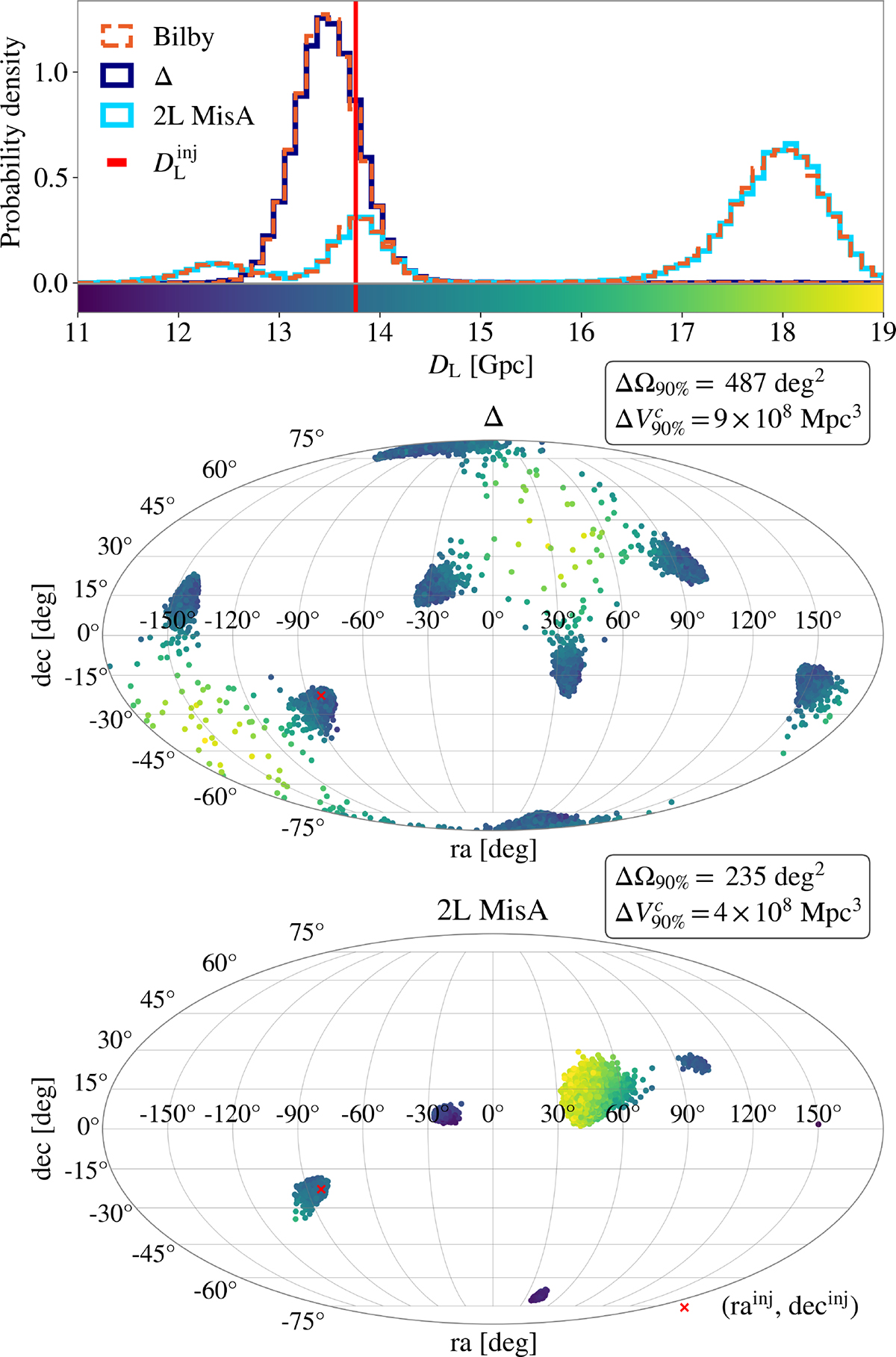

Top panel: Marginalized one-dimensional posterior distributions for the luminosity distance, recovered with DINGO-IS, for an event observed with the Δ (dark blue) and 2L MisA (light blue) configurations. The results are compared with BILBY (orange). The vertical line marks the injected luminosity distance. The remaining parameters are shown in Appendix D. Middle panel: Posterior samples obtained with DINGO-IS in the Δ configuration for right ascension (ra) and declination (dec), color-coded by luminosity distance. The red cross marks the injected sky position. We also report the sky-localization area (ΔΩ90%) and comoving-volume localization (ΔV90%c) errors. Bottom panel: Same as the middle panel but for the 2L MisA configuration. See Sect. 3.2 for details.
