Fig. 4

Fig. 4 Refer to the following caption and surrounding text.

Download original image

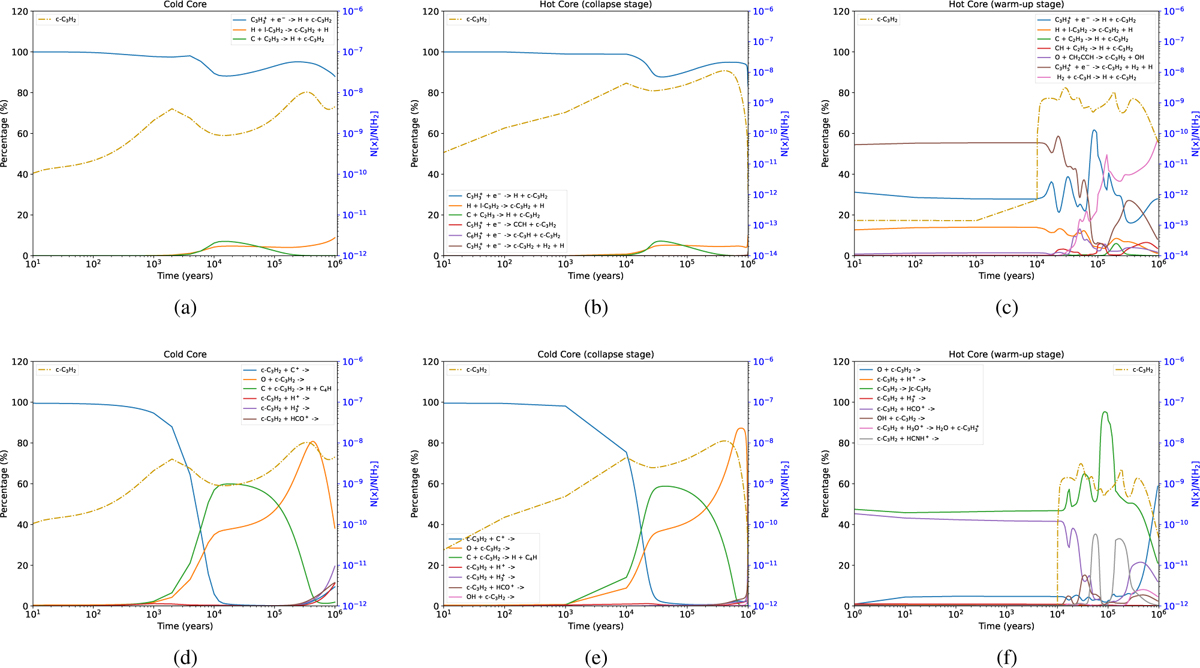

Net percentage contributions of the formation and destruction pathways of c-C3H2 in cold and hot cores. (a) Net percentage contributions of the main formation pathways of c-C3H2 in cold molecular cloud cores. (b) Net percentage contributions of the main formation pathways of c-C3H2 during the hot-core collapse stage. (c) Net percentage contributions of the main formation pathways of c-C3H2 during the hot-core warm-up stage. (d) Net percentage contributions of the main destruction pathways of c-C3H2 in cold molecular cloud cores. (e) Net percentage contributions of the main destruction pathways of c-C3H2 during the hot-core collapse stage. (f) Net percentage contributions of the main destruction pathways of c-C3H2 during the hot-core warm-up stage.
