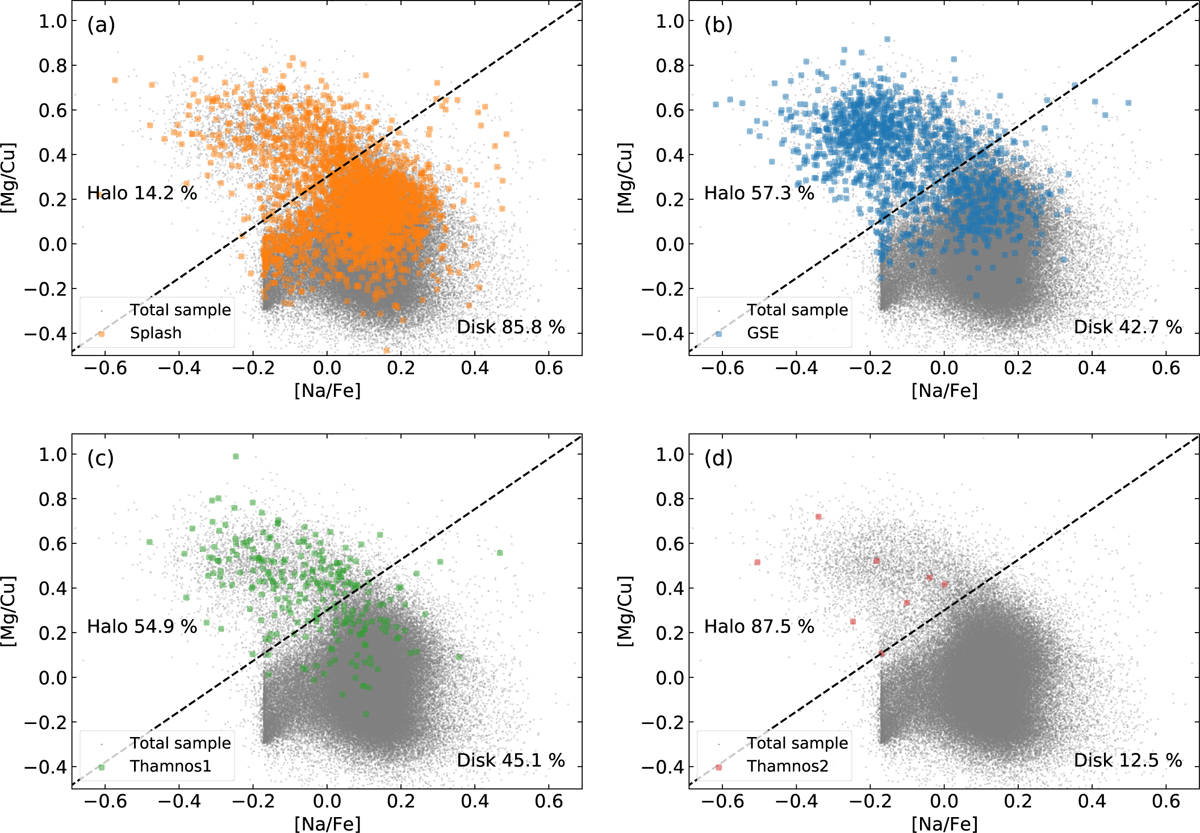

Fig. 4
Download original image
Scatter plot of all 116 047 stars selected from GALAH DR4 in the [Mg/Cu] − [Na/Fe] plane is shown in gray. The markers of different colors show stars in the following kinematic structures: Splash (Panel a, orange circles), GSE (Panel b, blue circles), Thamnos1 (Panel c, green circles), and Thamnos2 (Panel d, red circles). The dashed line is the same as on panel a and divides the stars into the disk and halo sub-samples. Percentages of the halo and disk stars in the kinematic structures are provided in each plot.
