Fig. 4.
Download original image

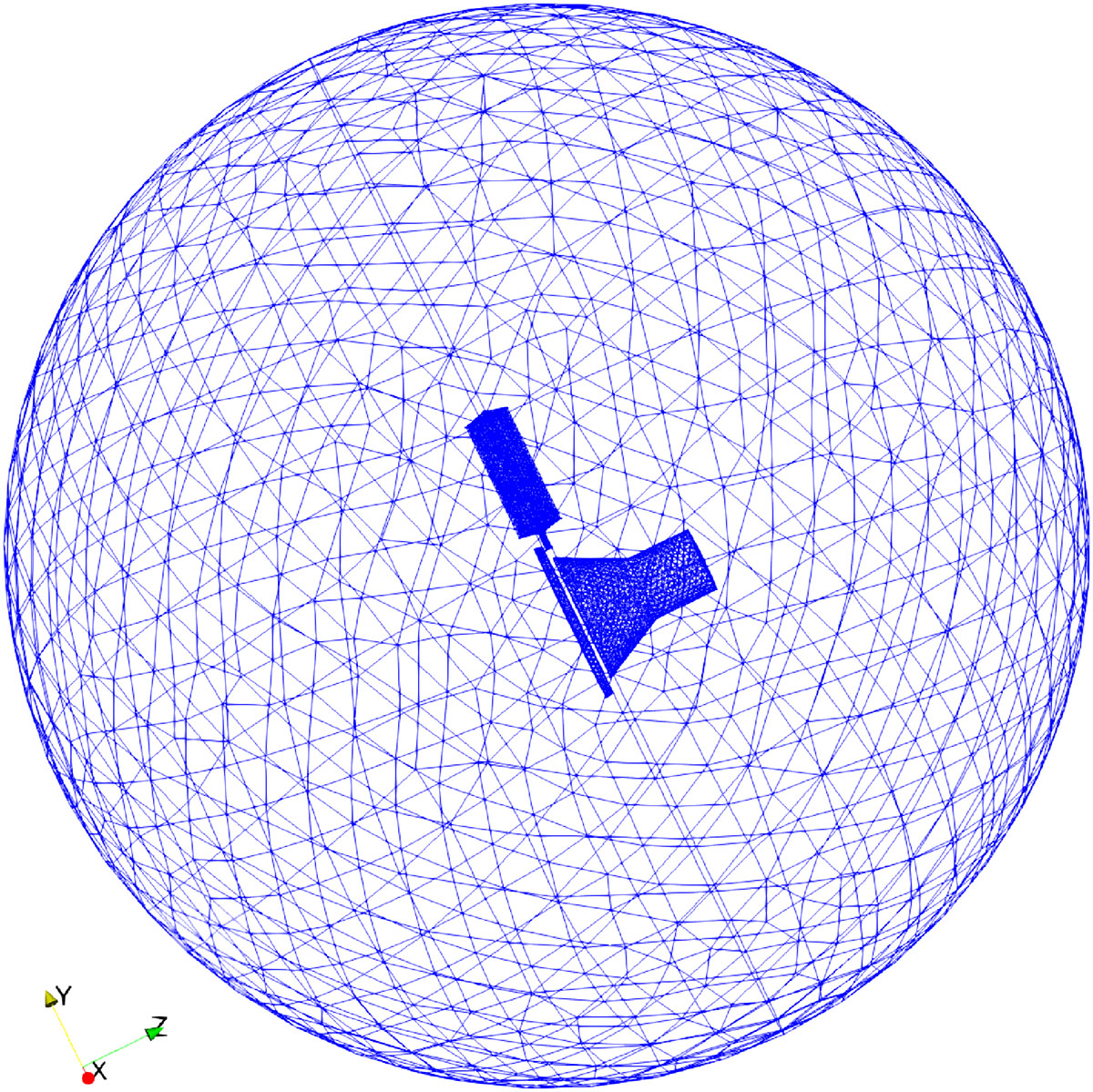

Spacecraft geometry and mesh used for the SPIS model. The geometry is from Diaz-Aguado et al. (2021). The heat shield and singular FIELDS antenna are not connected to the spacecraft bus due to mesh convergence errors.
