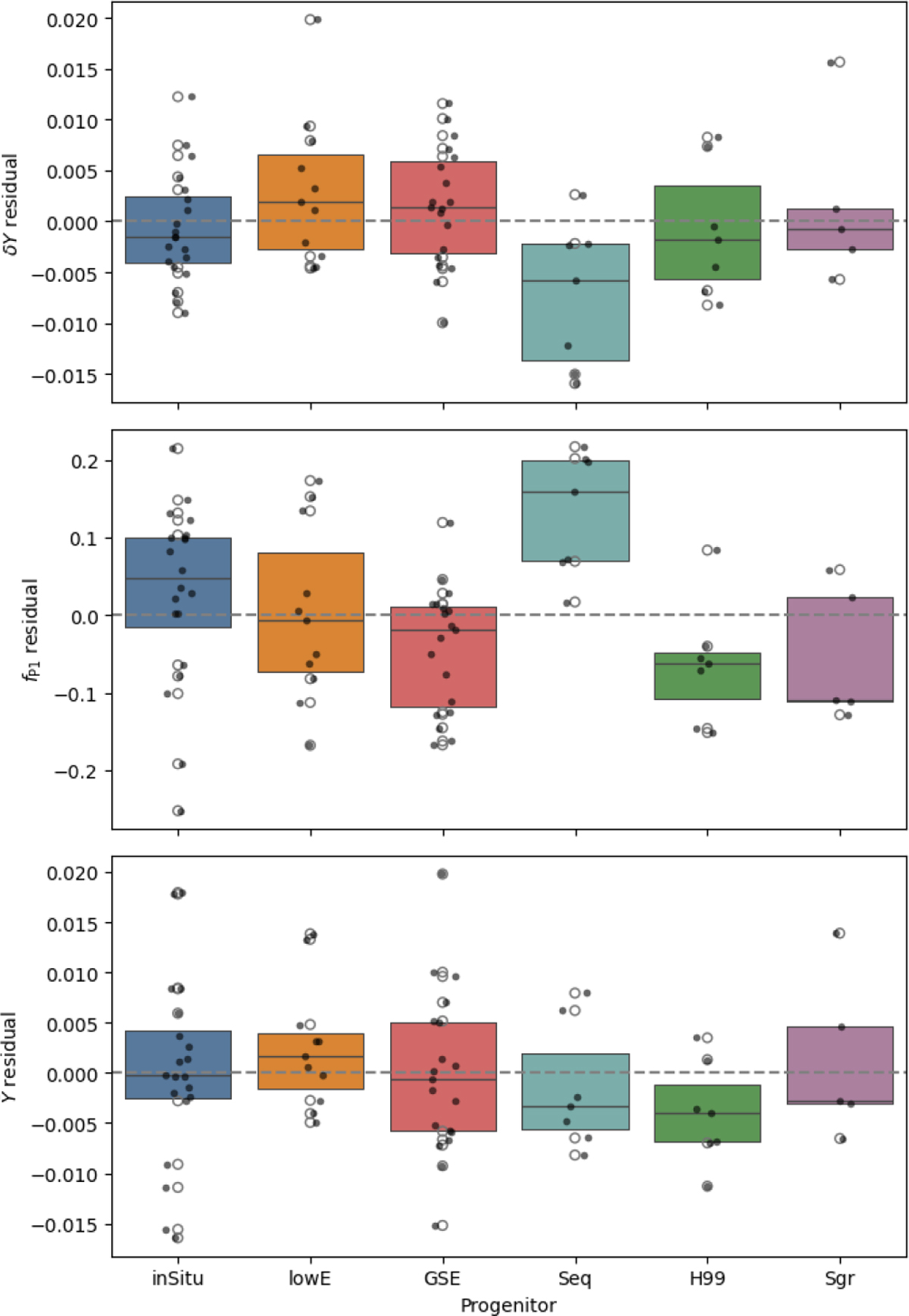

Fig. 6

Download original image
Residuals of the multiple-population properties δY (top), fP1 (middle), and
(bottom), obtained after subtracting the mass and metallicity trends, grouped by progenitor family. The dashed horizontal line marks zero residual, i.e. agreement with the global mass–metallicity relation; negative values indicate clusters lying below the predicted trend and do not correspond to unphysical negative helium enhancements (the physical δY is non-negative by construction). Boxes span the interquartile range, and horizontal lines mark the median. Individual clusters are shown as empty circles; filled points are the same clusters slightly shifted for visualisation.
