Fig. 10.
Download original image

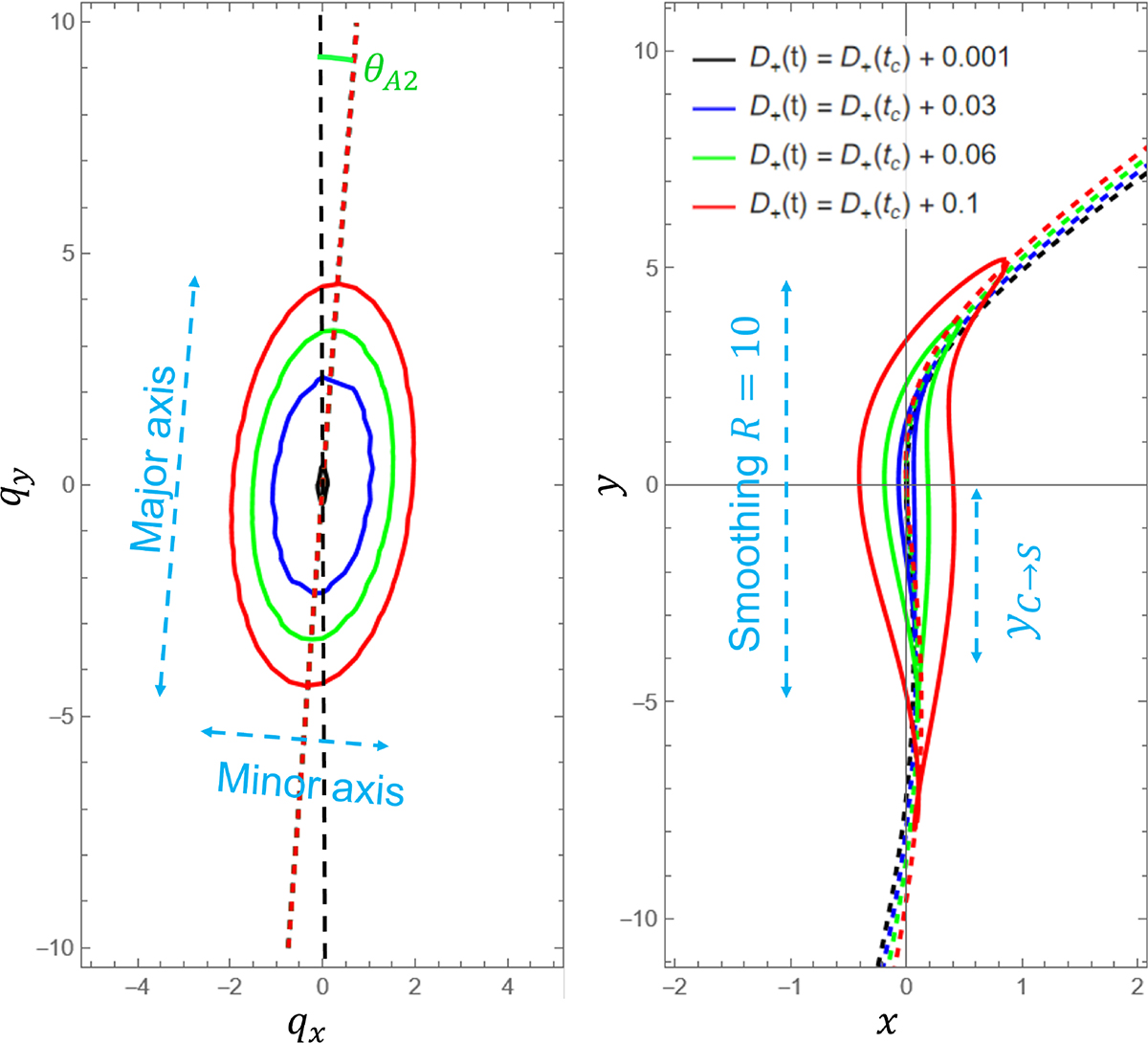

A2 caustic (solid lines) and the A3 spine (dashed lines) of the average pancake at D+(t)−D+(tc)∈{0.001, 0.05, 0.1, 0.15} in Lagrangian (left) and Eulerian (right) space. The x-axis in Eulerian space is zoomed by 200% for clarity.
