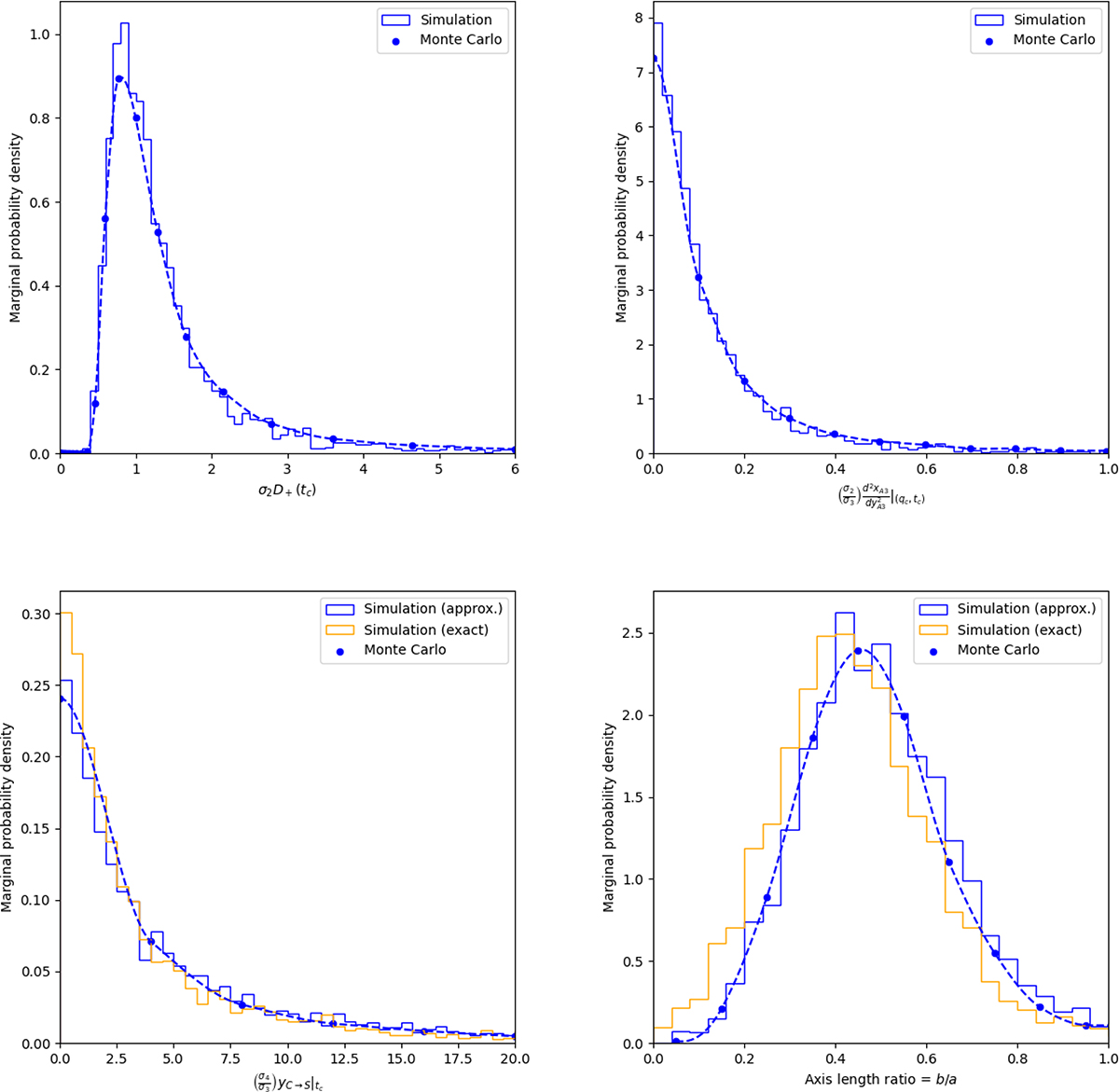

Fig. C.4.

Download original image
Comparison between marginal probability densities of shell-crossing times (top left), curvature (top right), C-S transition scale (bottom left), and axis-length ratio (bottom right) measured within the pancake population in 1-LPT simulations initialized using Gaussian random field with the parameters n = 1, Rc = 10 (shown in step histograms) and those computed using Monte Carlo integration of Eq. (44) and transformation through Eqs. (47), (48), (51), and (54) for the same set of parameters (n, Rc) (shown in interpolated curves).
