<h2 class="sec"><a name="SECTION000100000000000000000"></a>
Appendix A: Fit of the deprojected gas density profiles
</h2>
We show the electron density profiles, obtained from the deprojection of the
surface brightness, of the objects in our high-<I>z</I> sample. We overplot the best-fitted function form in Eq.&nbsp;(<a href="/articles/aa/full_html/2009/25/aa10878-08/aa10878-08.html#eq:ngas">5</a>) fitted over the radial range
<!-- MATH: $0-R_{\rm spat}$ -->
<IMG
 WIDTH="45" HEIGHT="26" ALIGN="MIDDLE" BORDER="0"
 SRC="img299.png"
 ALT="$0{-}R_{\rm spat}$">.
Both the best-fit parameters and
<!-- MATH: $R_{\rm spat}$ -->
<IMG
 WIDTH="29" HEIGHT="26" ALIGN="MIDDLE" BORDER="0"
 SRC="img1.png"
 ALT="$R_{\rm spat}$">
are quoted in Table&nbsp;<a href="/articles/aa/full_html/2009/25/aa10878-08/aa10878-08.html#tab:highz">1</a>.

<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="fig:profiles">&#160;</A><!-- end Label--><A NAME="1617"></A><A NAME="figure1368"
 HREF="img561.png"><IMG
 WIDTH="155" HEIGHT="231" SRC="Timg561.png"
 ALT="\begin{figure}
\par\vspace*{-0.0cm} \hbox{
\includegraphics[width=7cm]{ngas/MS1...

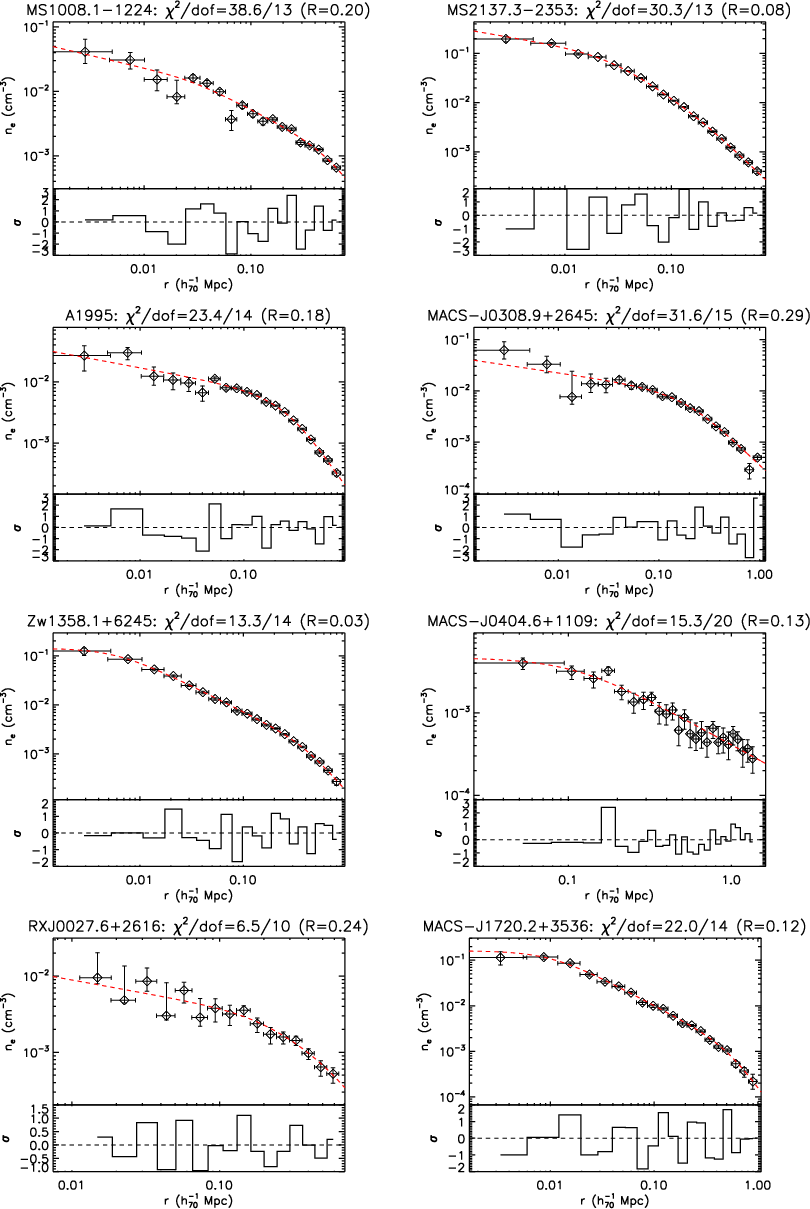

...s.ps}\includegraphics[width=7cm]{ngas/MACS-J1720.2+3536_ngas.ps} }\end{figure}"></A><!-- HTML Figure number: 13 --></td>
<td class="img-txt"><span class="bold">Figure A.1:</span><p>
Plots of the deprojected electron density profiles with the
best-fit model in Eq.&nbsp;(<a href="/articles/aa/full_html/2009/25/aa10878-08/aa10878-08.html#eq:ngas">5</a>) overplotted and the residuals
<!-- MATH: $\sigma_i = (d_i-m_i)/\epsilon_i$ -->
<IMG
 WIDTH="96" HEIGHT="26" ALIGN="MIDDLE" BORDER="0"
 SRC="img28.png"
 ALT="$\sigma _i = (d_i-m_i)/\epsilon _i$">
shown in the bottom panel, where <I>d</I><SUB><I>i</I></SUB>, <I>m</I><SUB><I>i</I></SUB> and
<!-- MATH: $\epsilon_i$ -->
<IMG
 WIDTH="13" HEIGHT="26" ALIGN="MIDDLE" BORDER="0"
 SRC="img29.png"
 ALT="$\epsilon _i$">
are the values of the data, model and error on the data at a given radius, respectively. Together with the
<!-- MATH: $\chi^2 = \sum (d_i-m_i)^2/\epsilon_i^2 = \sum \sigma_i^2$ -->
<IMG
 WIDTH="161" HEIGHT="30" ALIGN="MIDDLE" BORDER="0"
 SRC="img30.png"
 ALT="$\chi ^2 = \sum (d_i-m_i)^2/\epsilon _i^2 = \sum \sigma _i^2$">
value, the <I>R</I> factor represents a measure of the overall residuals and is given by
<!-- MATH: $R=\sum {\rm abs} (d_i-m_i) / \sum d_i$ -->
<IMG
 WIDTH="142" HEIGHT="26" ALIGN="MIDDLE" BORDER="0"
 SRC="img31.png"
 ALT="$R=\sum {\rm abs} (d_i-m_i) / \sum d_i$">.
In 81&nbsp;per&nbsp;cent of the cases, <I>R</I> &lt; 0.2.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=13&DOI=10.1051/0004-6361/200810878" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>

<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><!-- end Label--><A NAME="1402"></A><A NAME="figure1388"
 HREF="img562.png"><IMG
 WIDTH="166" HEIGHT="248" SRC="Timg562.png"
 ALT="\begin{figure}
\par\vspace*{-0.0cm} \hbox{\includegraphics[width=7.5cm]{ngas/Zw0...

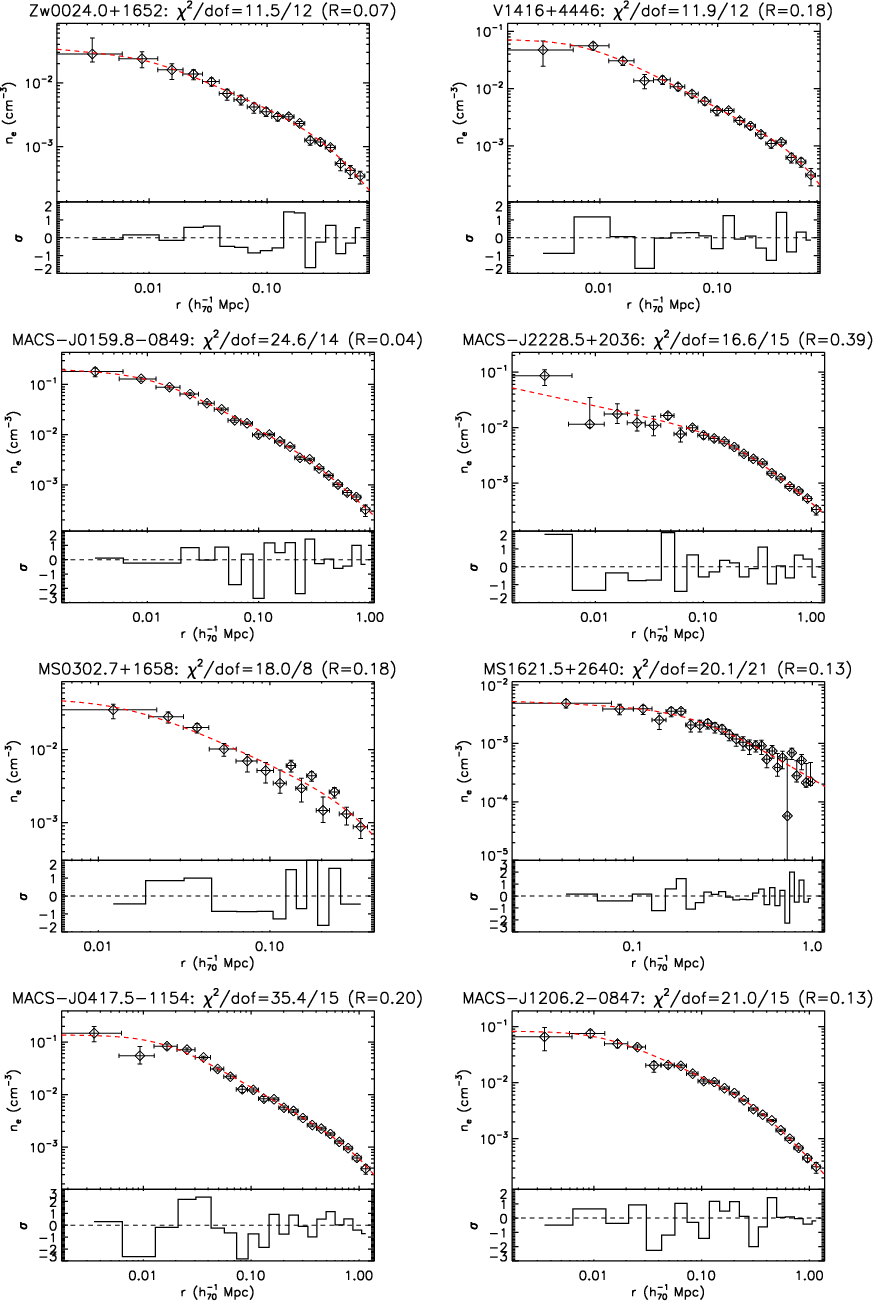

...s} \includegraphics[width=7.5cm]{ngas/MACS-J1206.2-0847_ngas.ps} }\end{figure}"></A><!-- HTML Figure number: 14 --></td>
<td class="img-txt"><span class="bold">Figure A.1:</span><p>
continued.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=14&DOI=10.1051/0004-6361/200810878" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>

<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><!-- end Label--><A NAME="1420"></A><A NAME="figure1406"
 HREF="img563.png"><IMG
 WIDTH="164" HEIGHT="248" SRC="Timg563.png"
 ALT="\begin{figure}
\vspace*{-0.0cm} \hbox{
\includegraphics[width=7.5cm]{ngas/V170...

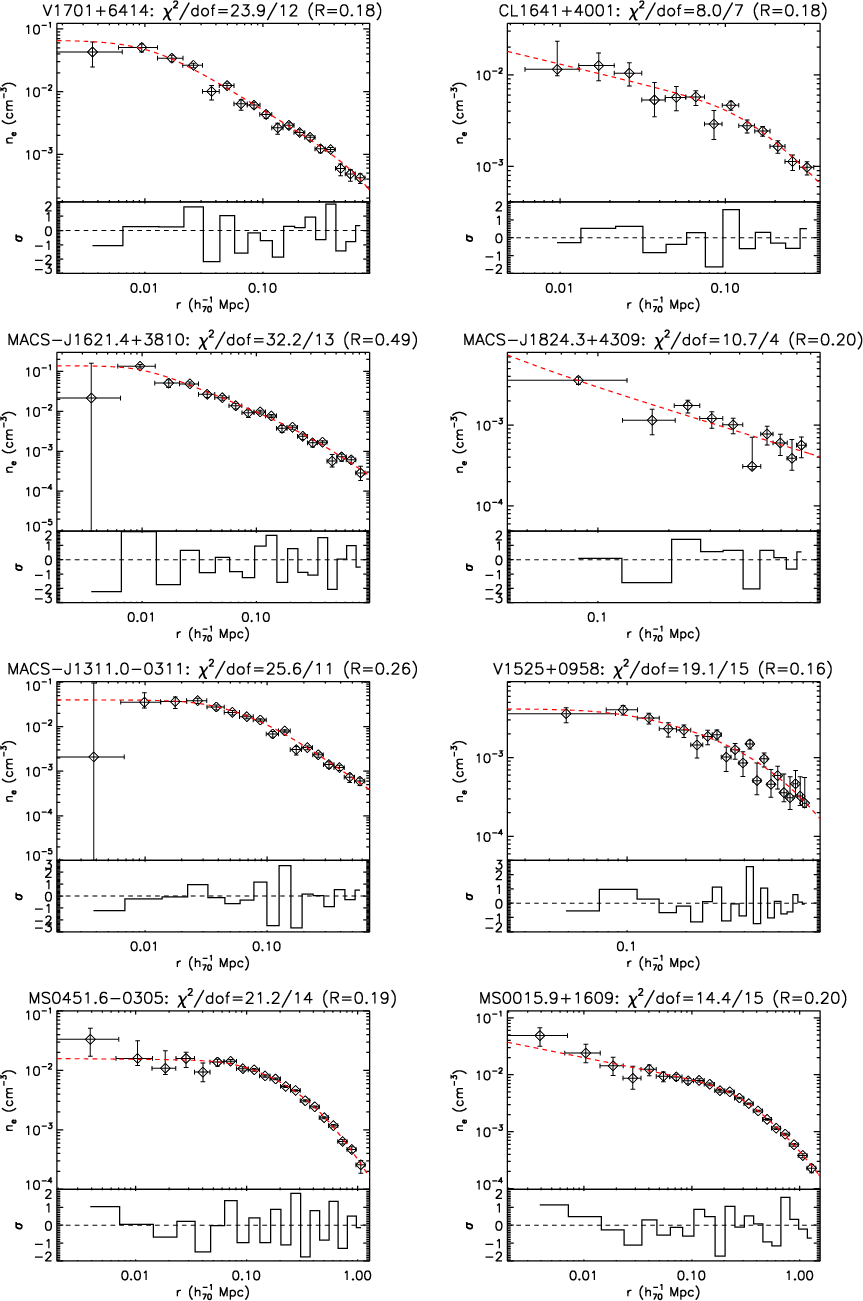

...as.ps} \includegraphics[width=7.5cm]{ngas/MS0015.9+1609_ngas.ps} }\end{figure}"></A><!-- HTML Figure number: 15 --></td>
<td class="img-txt"><span class="bold">Figure A.1:</span><p>
continued.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=15&DOI=10.1051/0004-6361/200810878" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>

<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><!-- end Label--><A NAME="1438"></A><A NAME="figure1424"
 HREF="img564.png"><IMG
 WIDTH="165" HEIGHT="248" SRC="Timg564.png"
 ALT="\begin{figure}
\vspace*{-0.0cm} \hbox{
\includegraphics[width=7.5cm]{ngas/MACS-...

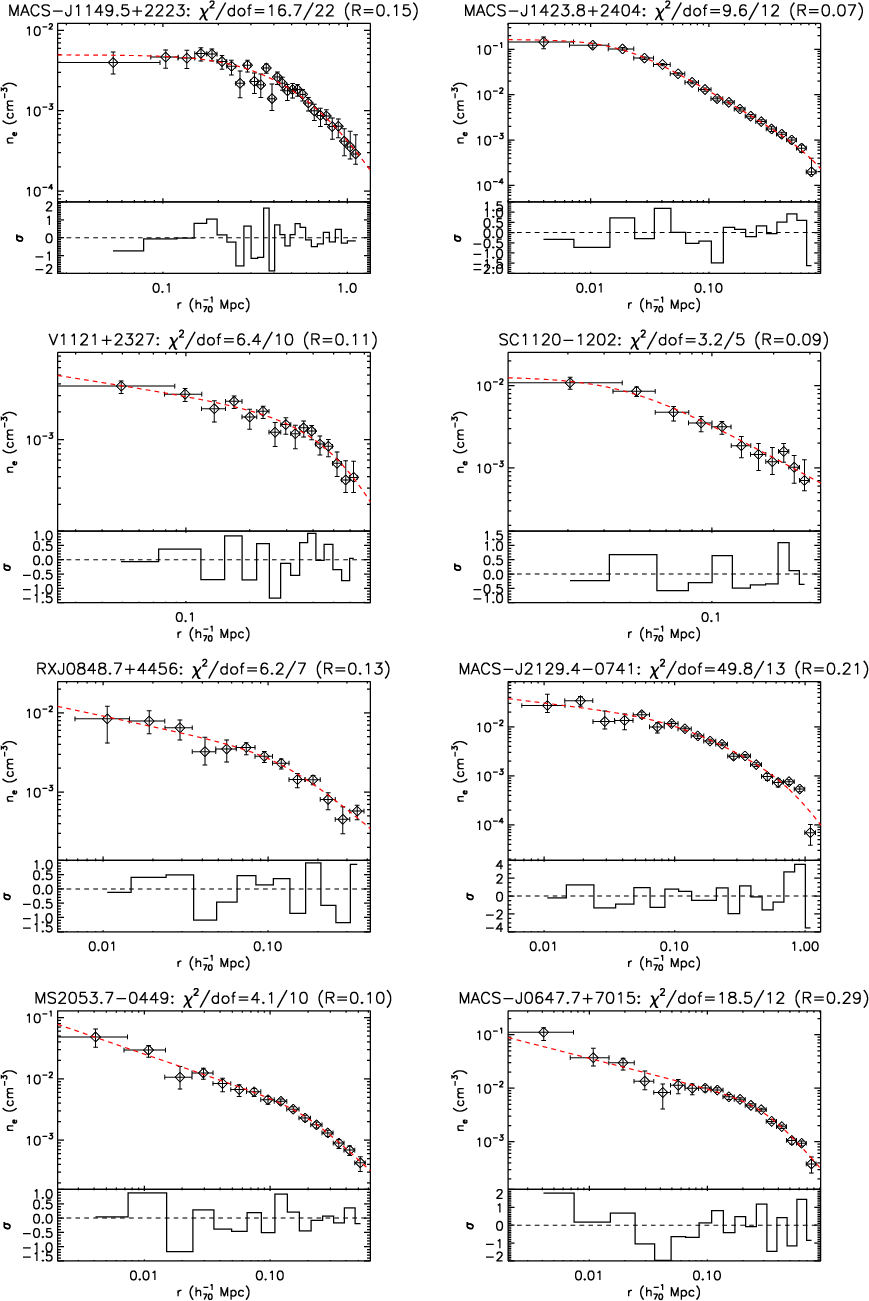

...s} \includegraphics[width=7.5cm]{ngas/MACS-J0647.7+7015_ngas.ps} }\end{figure}"></A><!-- HTML Figure number: 16 --></td>
<td class="img-txt"><span class="bold">Figure A.1:</span><p>
continued.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=16&DOI=10.1051/0004-6361/200810878" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>

<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><!-- end Label--><A NAME="1456"></A><A NAME="figure1442"
 HREF="img565.png"><IMG
 WIDTH="164" HEIGHT="248" SRC="Timg565.png"
 ALT="\begin{figure}
\vspace*{-0.0cm} \hbox{
\includegraphics[width=7.5cm]{ngas/RXJ09...

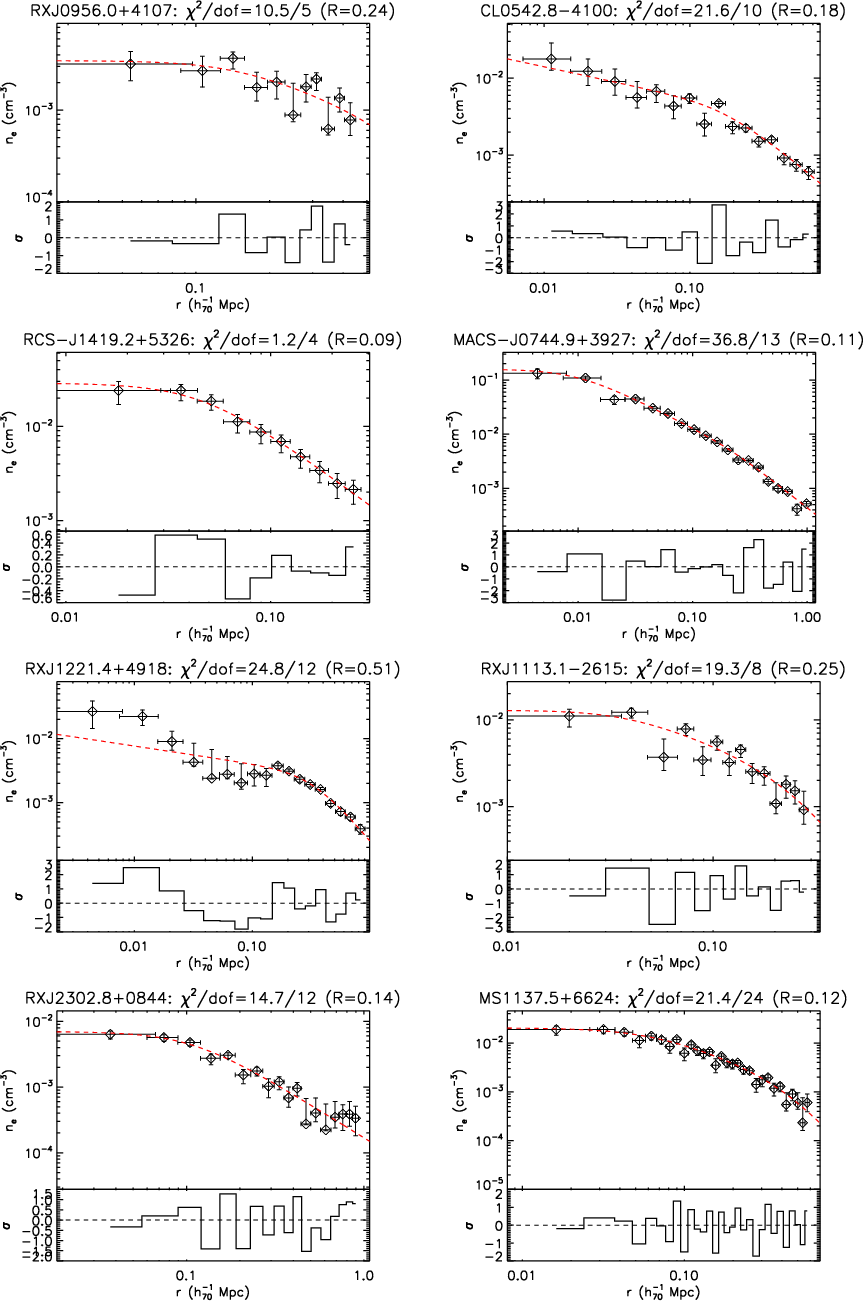

...as.ps} \includegraphics[width=7.5cm]{ngas/MS1137.5+6624_ngas.ps} }\end{figure}"></A><!-- HTML Figure number: 17 --></td>
<td class="img-txt"><span class="bold">Figure A.1:</span><p>
continued.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=17&DOI=10.1051/0004-6361/200810878" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>

<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><!-- end Label--><A NAME="1474"></A><A NAME="figure1460"
 HREF="img566.png"><IMG
 WIDTH="162" HEIGHT="248" SRC="Timg566.png"
 ALT="\begin{figure}
\par\vspace*{-0.0cm} \hbox{
\includegraphics[width=7.5cm]{ngas/R...

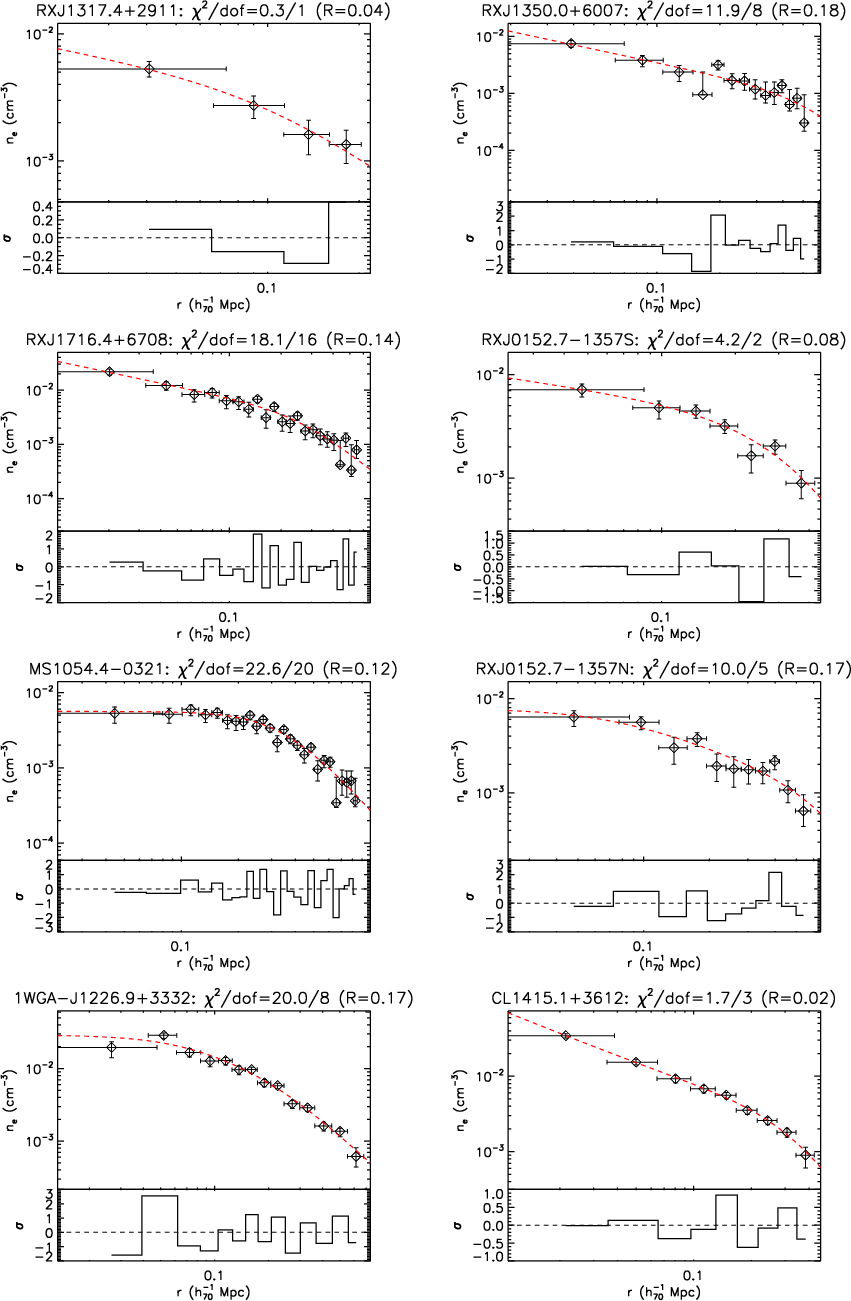

...as.ps} \includegraphics[width=7.5cm]{ngas/CL1415.1+3612_ngas.ps} }\end{figure}"></A><!-- HTML Figure number: 18 --></td>
<td class="img-txt"><span class="bold">Figure A.1:</span><p>
continued.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=18&DOI=10.1051/0004-6361/200810878" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>

<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><!-- end Label--><A NAME="1486"></A><A NAME="figure1478"
 HREF="img567.png"><IMG
 WIDTH="162" HEIGHT="122" SRC="Timg567.png"
 ALT="\begin{figure}
\par\vspace*{-0.0cm} \hbox{
\includegraphics[width=7.5cm]{ngas/R...

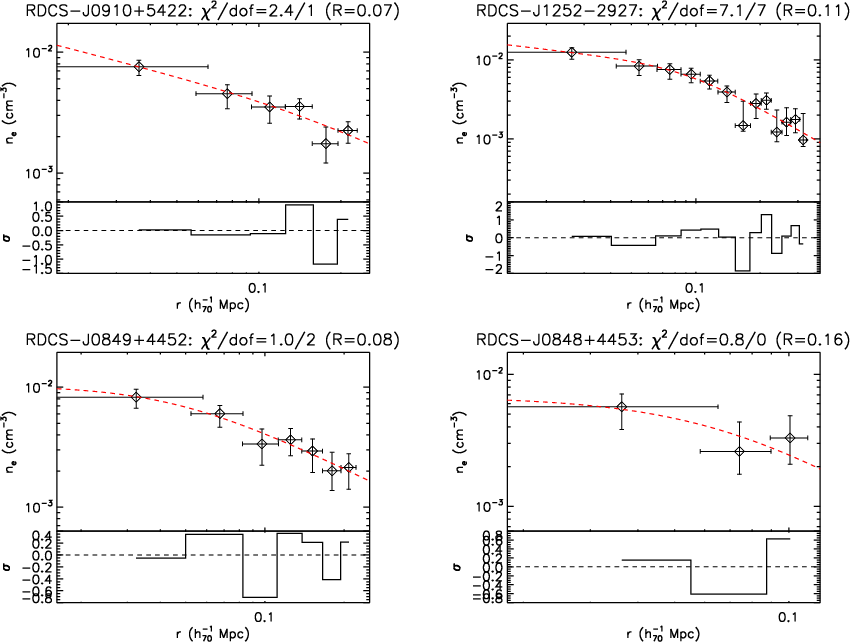

....ps} \includegraphics[width=7.5cm]{ngas/RDCS-J0848+4453_ngas.ps} }\end{figure}"><!-- HTML Figure number: 19 --></td>
