Fig. 7
Download original image

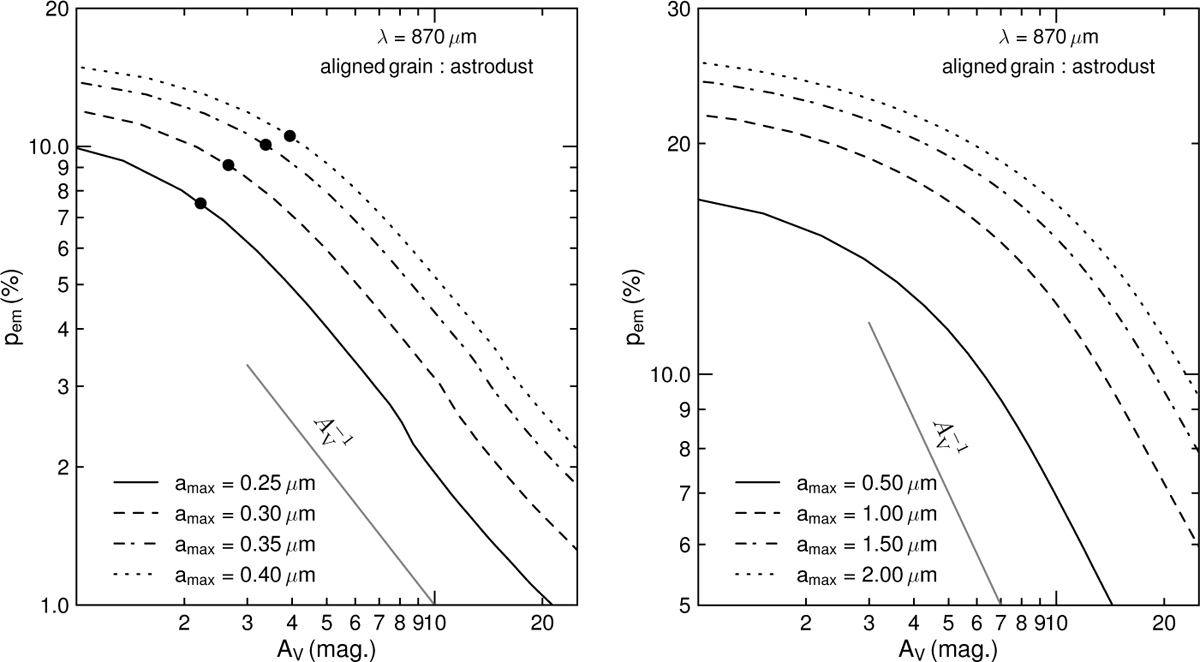

Same as in Figure 4. Relation between pem and AV at 870 μm for different maximum grain sizes. The grey line shows a slope of −1, indicating a total loss of grain alignment. Smaller grains quickly lose their alignment within the cloud (left panel). If the grains are sufficiently large, the alignment is more efficient at the same AV, resulting in shallower slopes.
