Fig. 5


Download original image

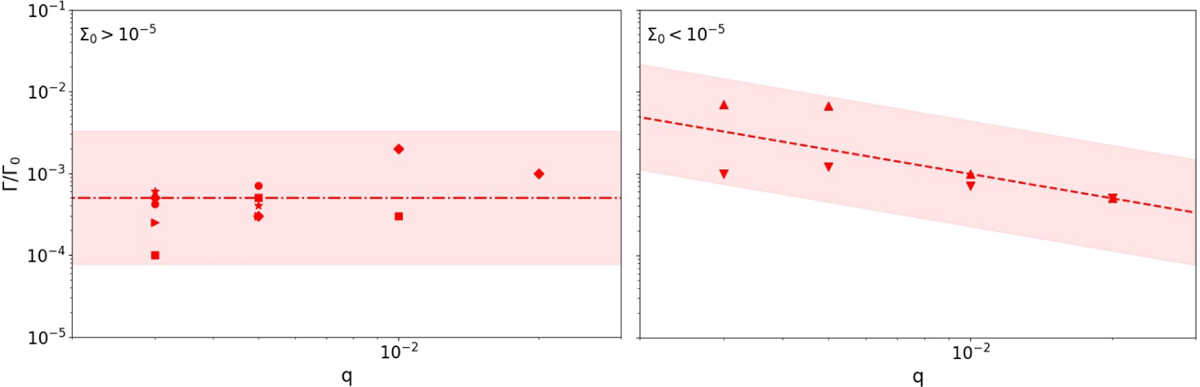

Absolute values of the normalised torques for planets undergoing outward migration in low-viscosity discs (α = 10−4) with 2 × 10−3 < q < 2 × 10−2 and e < 0.2 (see Table 1). Left: results from the simulations assuming a local density Σ0 > 10−5. Right: results from the simulations assuming Σ0 < 10−5. In each panel, the fitting function proposed in this work (dashed red lines-see Eq. (6)) along with a region within ±2 the standard deviation of the logarithmic residuals (red shadow area). Symbols and colours are as in Figure 3.
