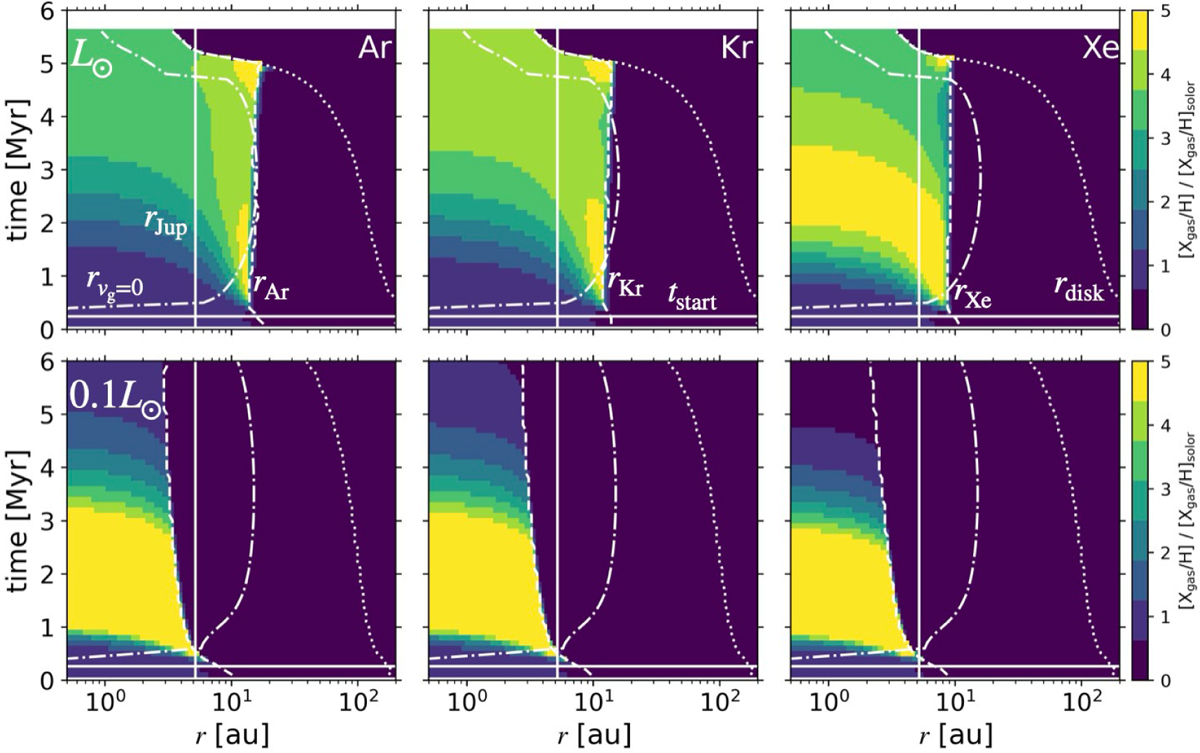

Enrichment of noble gases compared to their solar abundances in a protoplanetary disk for the sun-like stellar luminosity (upper row) and the lower stellar luminosity (lower row) obtained with the desorption parameters from L+2024. The left, center, and right columns show the Ar, Kr, and Xe enrichment. The white solid and dotted lines show the positions of current Jupiter (5.2 au) and disk edge, r_disk. The dashed-dotted lines indicate the radii where the gas velocity is converted to outward, $r_{{\upsilon }_{\text{g}}=0}$. The disk parameter set is No. L9: α₀ = 0.04, Sc = 1.0, ƒ_IPE = 0.1, FUV = 10 G₀, and ƒ_vfrag is on.
