Fig. 4
Download original image

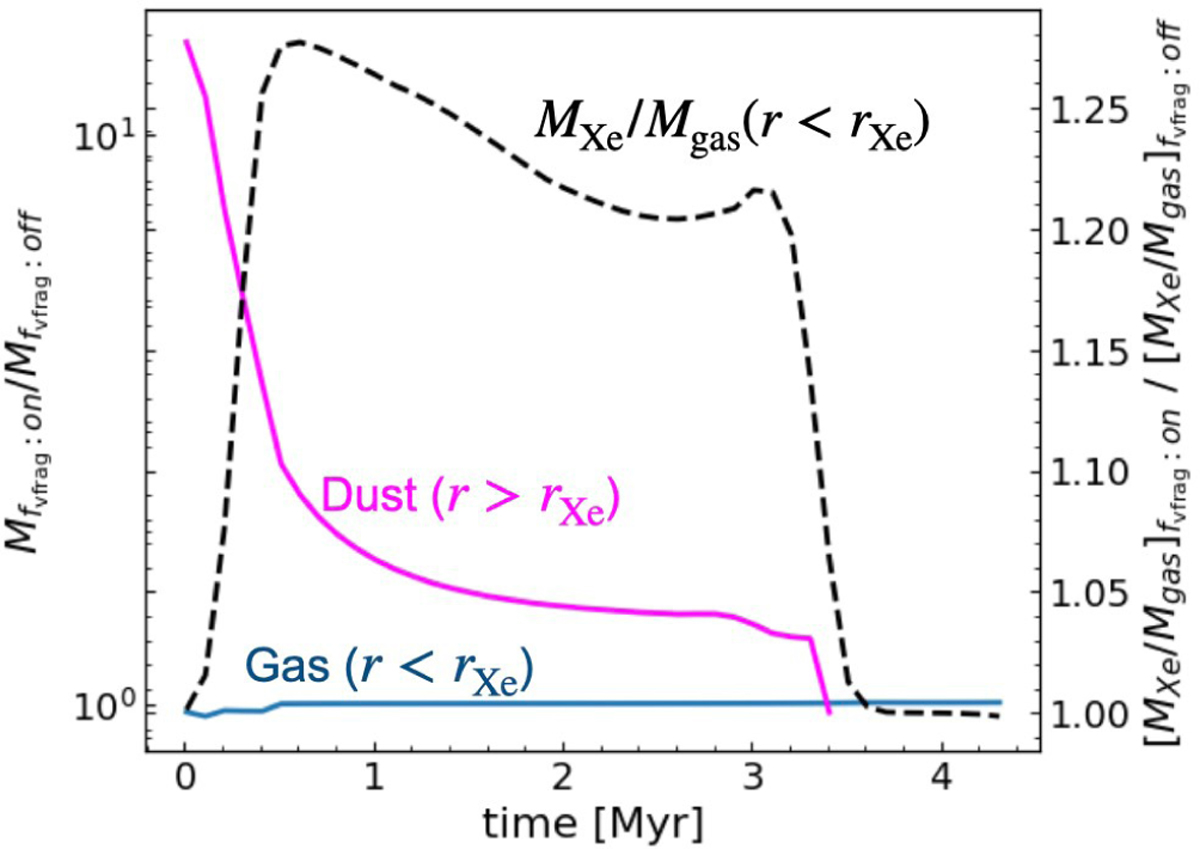

Ratio of the mass and enrichment for case no. S8 (ƒvfrag : on) compared to case no. S9 (ƒvfrag: off). The blue line represents the mass ratio of the gas disk inside the Xe ice line, rXe. The magenta line represents the mass ratio of the dust outside the Xe ice line. The black dashed line represents the ratio of Xe enrichment inside the Xe ice line.
