Fig. 14
Download original image

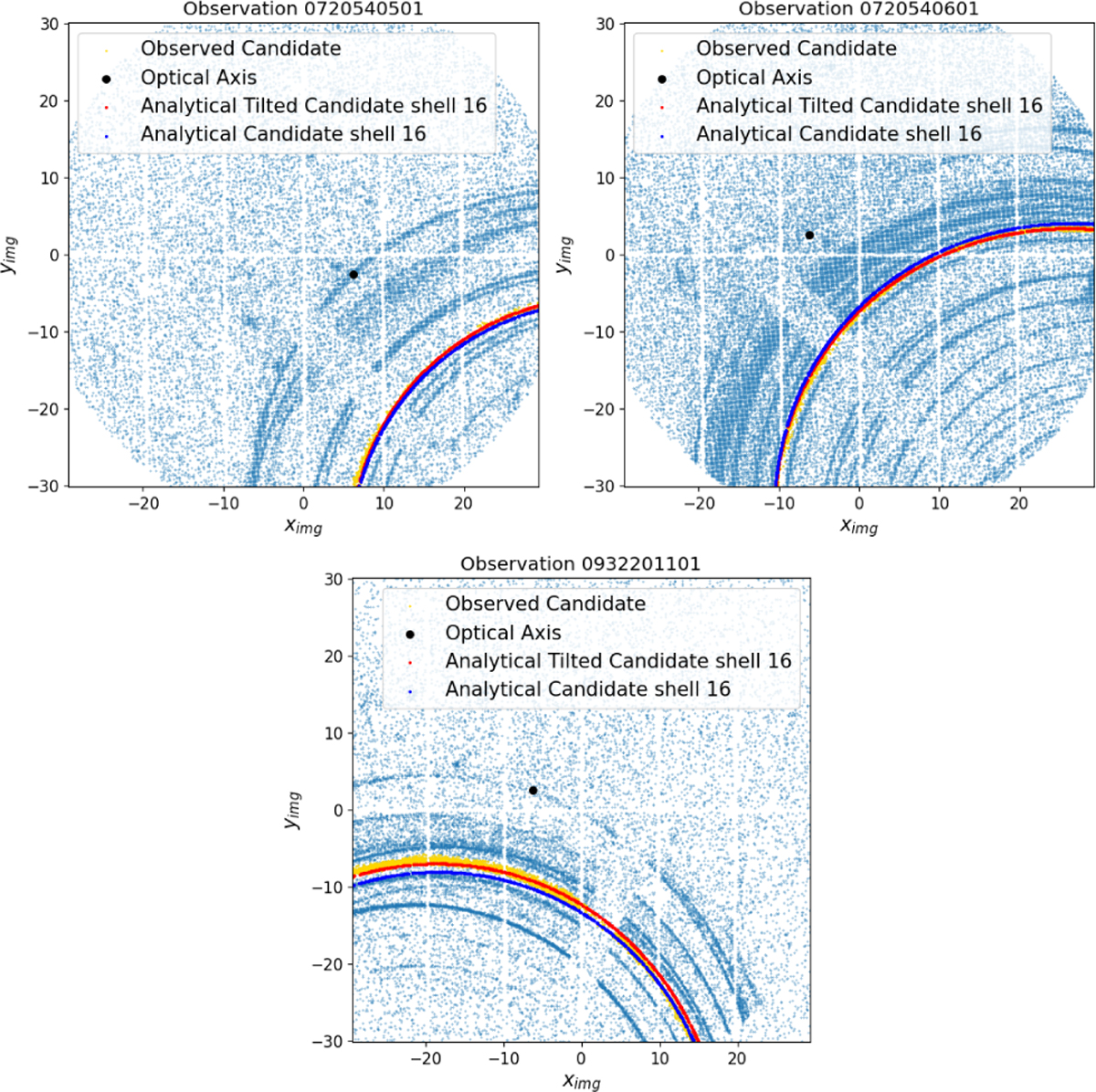

Representation of analytical shell 16 assuming the tilt parameters reported in Table 2 (red arcs), compared to the same shell produced assuming no tilt (blue arc). The best-fit values improve the similarity of the arc geometry in all three observations.
